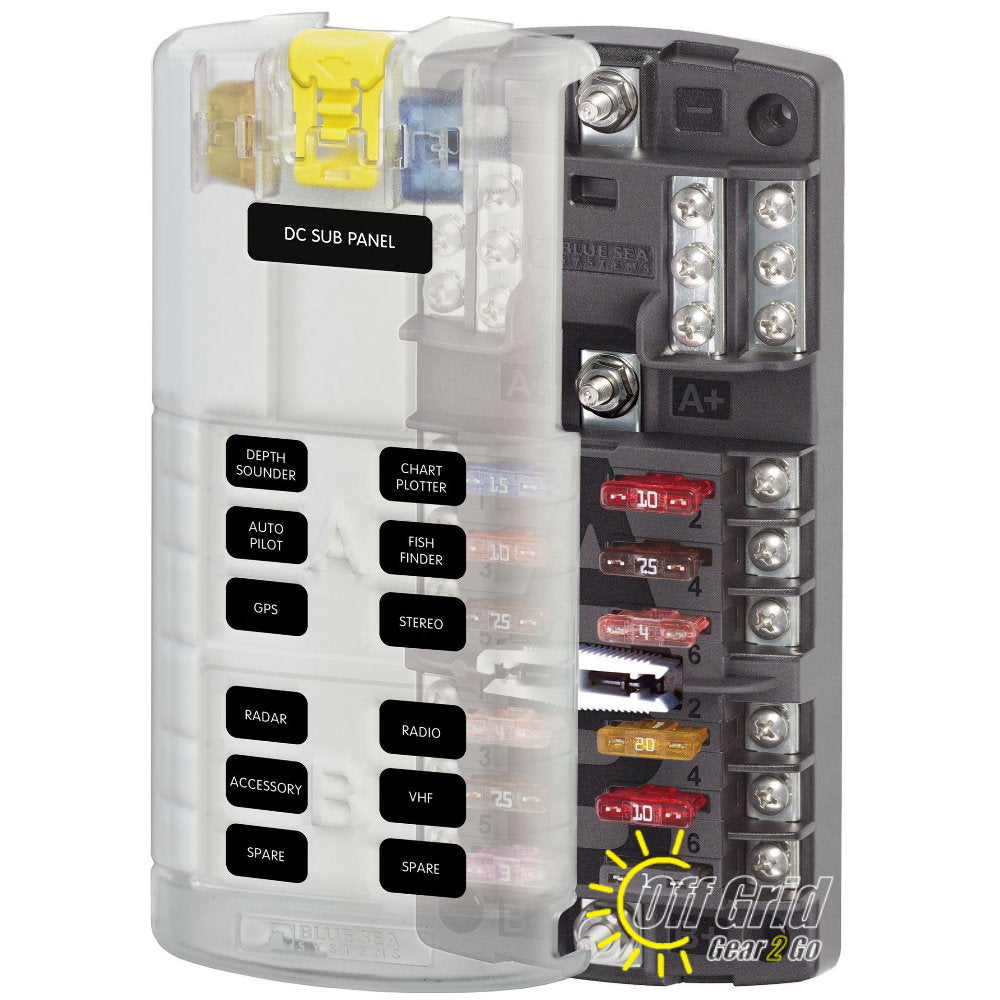

Blue Sea 5032 12 Circuit Split Bus Fuse Block with Ground and Cover


Price:
$49.99

Shipping calculated at checkout

Stock:
In stock

Description

Quality fuse block accepts standard ATC/ATO fuses. Positive distribution bus with #8-32 stud. Split design, 2 isolated groups of 6 circuits. 100A max per block, 30A max per circuit. Includes storage for 2 spare fuses. Snap-in Cover. Fuses not included.

  • Provides two isolated groups of six ATO/ATC circuits
  • For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
  • Positive distribution bus with #8-32 stud
  • Can be used for 24-hour circuits
  • Models available with or without a cover
  • Cover satisfies ABYC/USCG requirements for insulation
  • Incorporates an easy to open push button latch providing easy access to fuses
  • Storage for two spare fuses, and recesses for labeled circuit identification
  • Tin-plated copper buses and fuse clips
  • Accepts ring or spade type terminals
  • Accepts ATO and ATC fast acting blade fuses
  • Voltage Maximum Operating 32V DC
  • Amperage Maximum Operating (per circuit) 30 Amps
  • Amperage Maximum Operating (per block) 100 Amps
  • Screw Terminal #8-32 Screws with captive star lock washer
  • Mounting #8 Screw (M4)
  • Fuses sold separately. Labels not included
