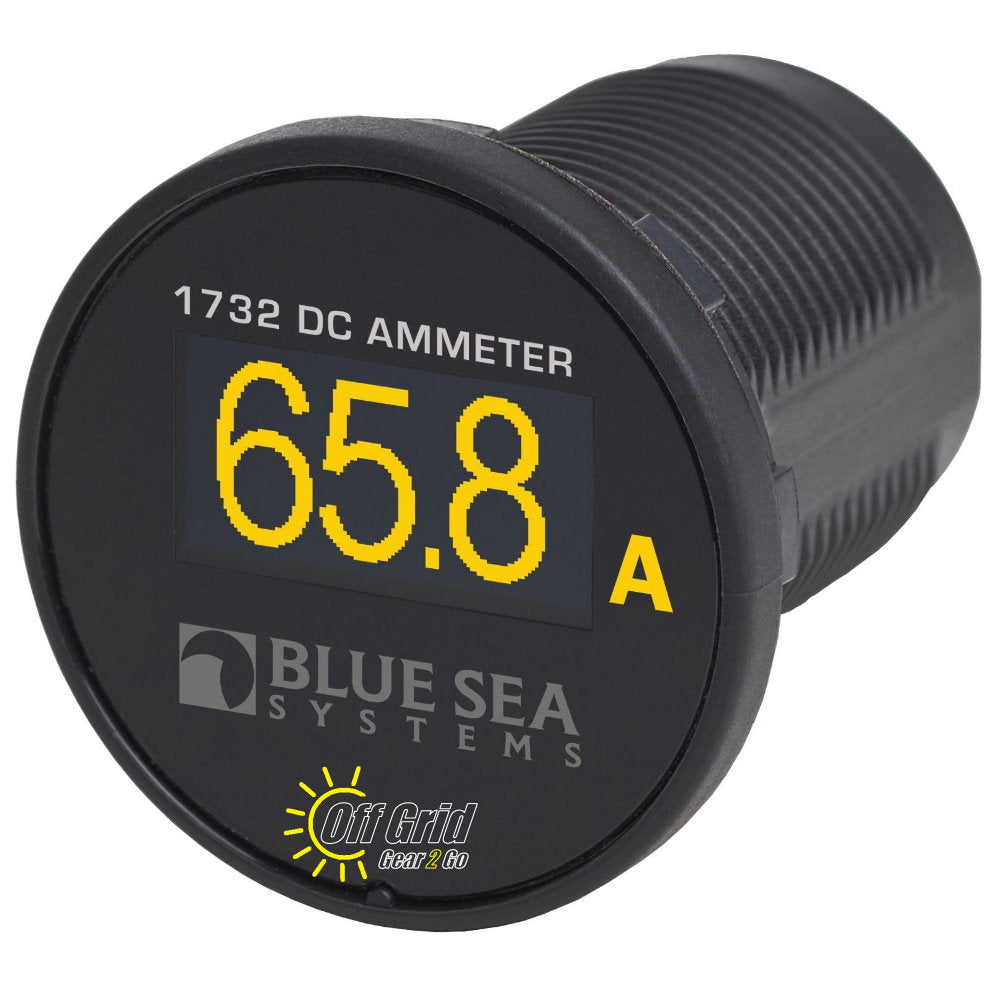

Blue Sea 1732 Mini OLED Panel DC Ammeter


Shipping calculated at checkout

In stock


Monitors DC Amps on a bright, waterproof, daylight readable OLED yellow display. DC amperage is monitored from an included external 100 amp DC shunt. Negative or positive side wiring. Mounts in a common 1-1/8 in hole.

Monitors DC amperage on a bright , waterproof daylight readable OLED display.  Can be mounted in optional PanelPod1, PanelPod2, PanelPod3 housings or PanelPlate1, PanelPlate2, PlanelPlate3 or PanelPlate4.  Fits standard 1-1/8" or 1-3/16" diameter holes.

  • Compact size allows mounting in any convenient location
  • Reverse polarity protected
  • Positive or Negative side wiring
  • Mounts in common 1-1/8" hole
  • Rear housing depth: 2" (with quick disconnect tabs)
  • Waterproof Yellow OLED display - IP66 rated
  • Monitors: -100A to 100A DC
  • Resolution: 0.1A
  • Continuous Rating: 1-100 amps
  • Intermittent Rating: 110A, up to 2 minutes
  • Cranking Rating: 175A, up to 30 seconds
  • Usable Voltage range: 8-36 V DC
  • Operating current: 15mA
  • Accuracy: +/- 2.0%
  • Includes: 100A analog shunt
