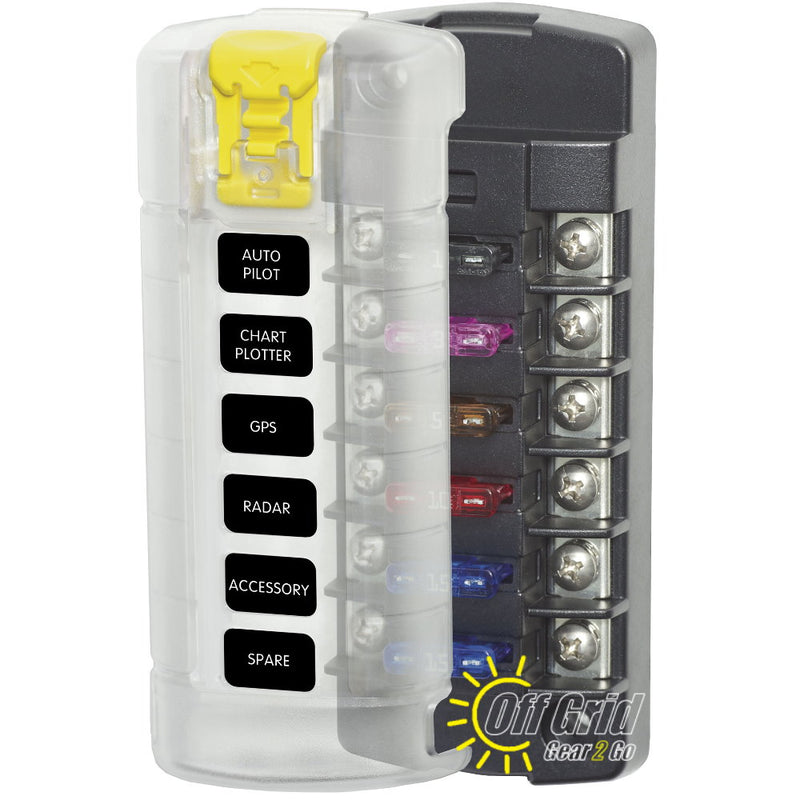

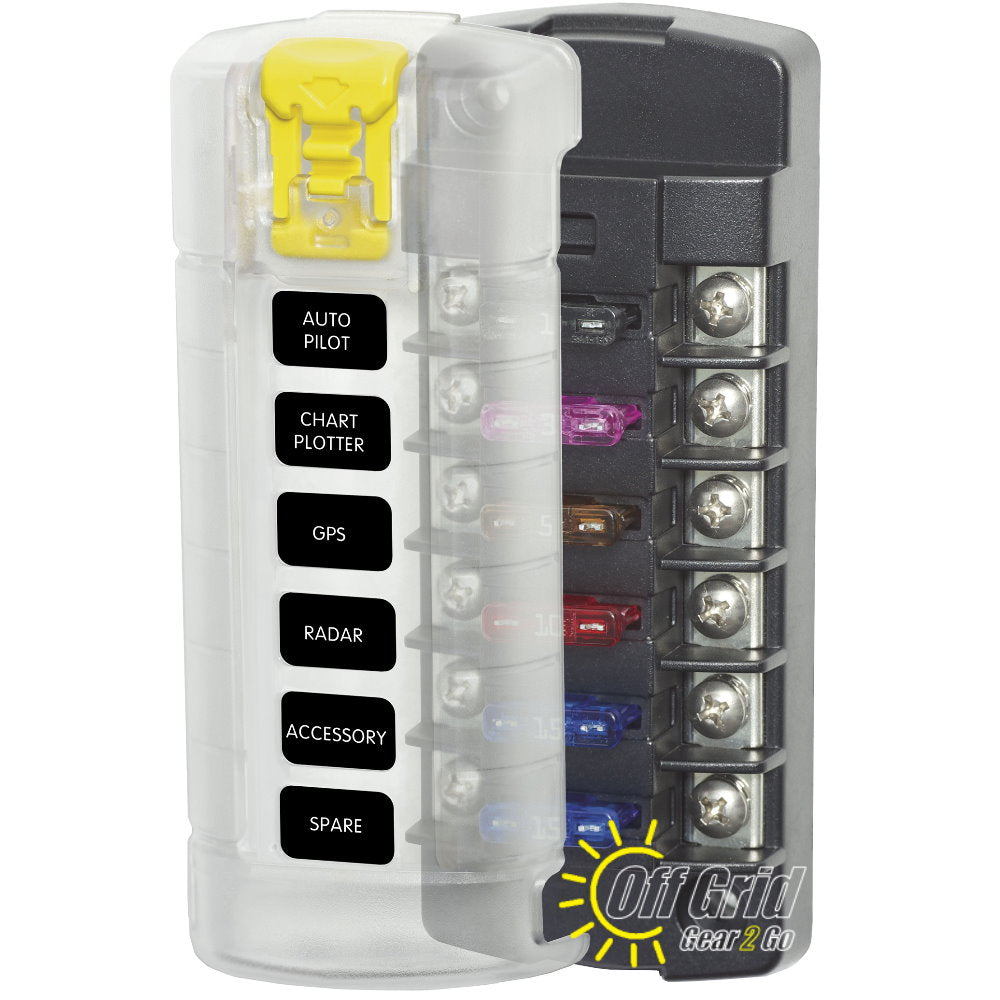

Blue Sea 5035 6 Independent Circuit Fuse Block with Cover


Shipping calculated at checkout

In stock


Quality fuse block accepts standard ATC/ATO fuses. 6 independent circuit design with #8-32 stud. 30A max per circuit, 40A max per jumped circuit group.

Includes 2 terminal block jumpers & cover. Spare fuse holder. 2.1"W x 5.2"H x 1.5"D. Fuses not included.

  • 6 independent circuit design with #8-32 stud
  • Can be used for 24-hour circuits
  • Models available with or without a cover
  • Cover satisfies ABYC/USCG requirements for insulation
  • Incorporates an easy to open push button latch providing easy access to fuses
  • Storage for one spare fuse, and recesses for labeled circuit identification
  • Tin-plated copper buses and fuse clips
  • Accepts ring or spade type terminals
  • Accepts ATO and ATC fast acting blade fuses
  • Voltage Maximum Operating 32V DC
  • Amperage Maximum Operating (per circuit) 30 Amps
  • Amperage Maximum Operating (per jumped circuit group) 40 Amps
  • Screw Terminal #8-32 Screws with captive star lock washer
  • Mounting #8 Screw (M4)
  • Fuses sold separately. Labels not included
