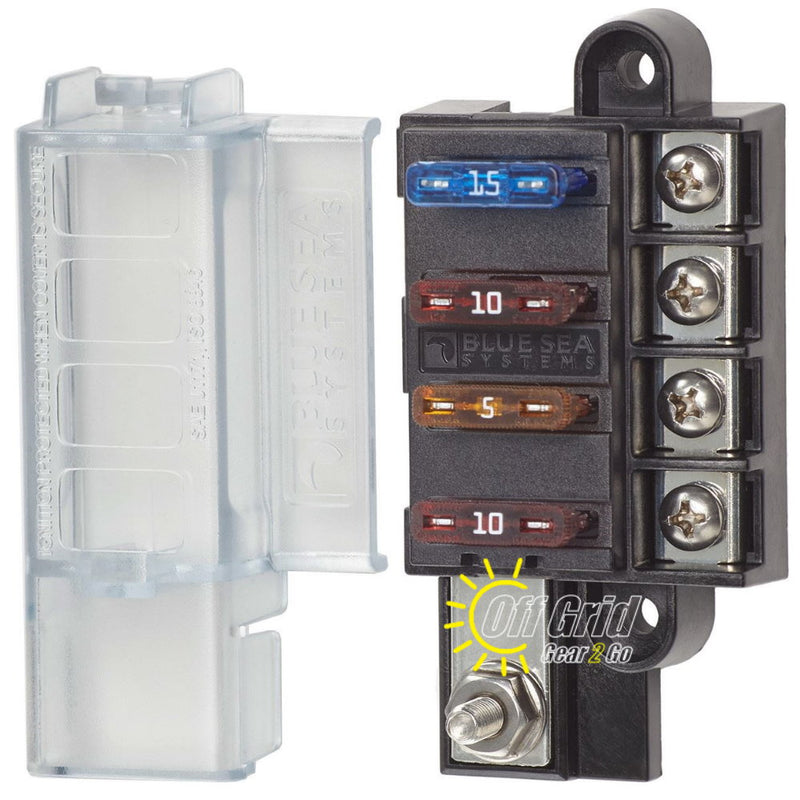

Provides surface mount circuit protection for ATO/ATC fuses in a compact footprint. Single side design allows wire entry from one side to minimize footprint.
100 Amp max per block, 30 Amp max per circuit. Includes clear snap-in cover. Fuses not included.
- Meets ISO 8846 and SAE J1171 for use in gasoline engine compartments
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Fuses sold separately
- Circuits: 4
- Max Amperage: 100A per block, 30A per circuit
- Max Voltage: 32V DC
- Compact Size: 3.65"W x 1.3"H x 1.7"D
