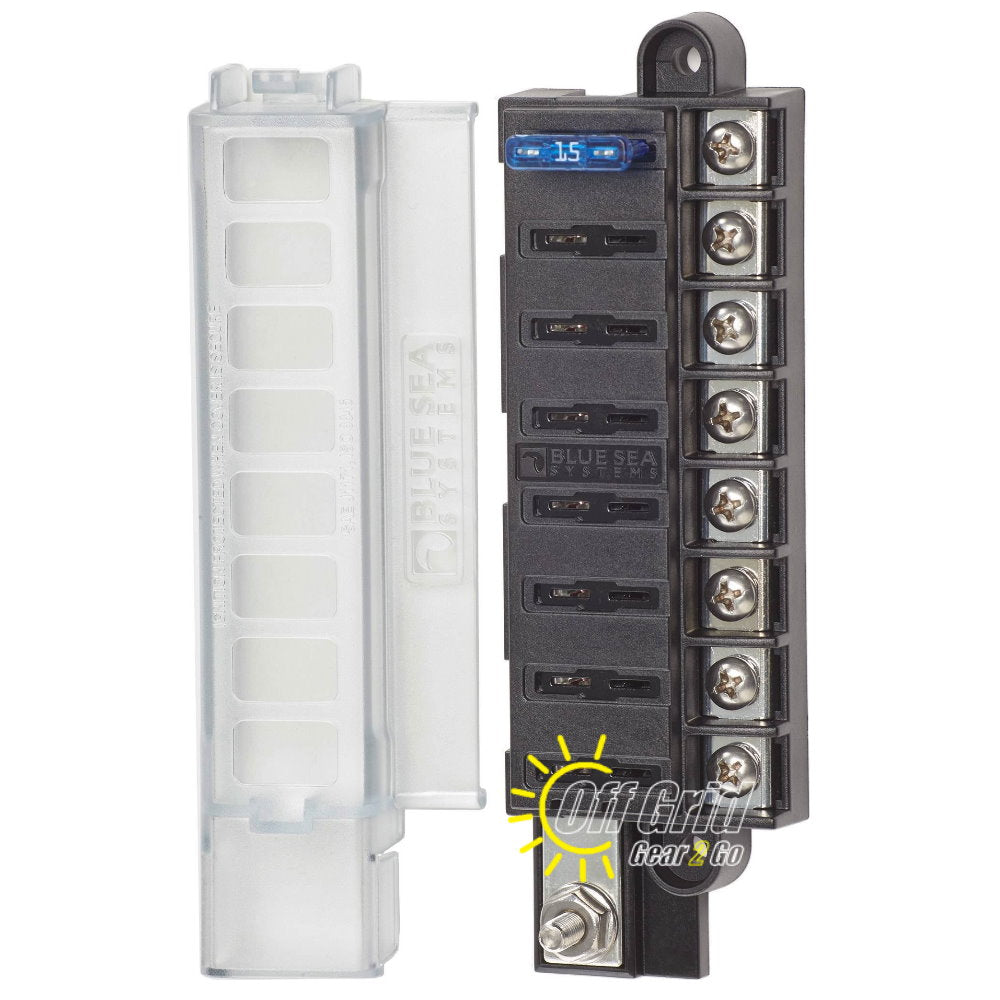

Blue Sea 5046 8 Circuit ST Blade Compact Fuse Block with Cover, 8 Circuits


Shipping calculated at checkout

In stock


Provides surface mount circuit protection for ATO/ATC fuses in a compact footprint. Single side design allows wire entry from one side to minimize footprint. 100 Amp max per block, 30 Amp max per circuit. Includes clear snap-in cover. Fuses not included.

  • Meets ISO 8846 and SAE J1171 for use in gasoline engine compartments
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Fuses sold separately
  • Circuits: 8
  • Max Amperage: 100A per block, 30A per circuit
  • Max Voltage: 32V DC
  • Compact Size: 5.75"W x 1.3"H x 1.7"D
