Blue Sea 7700 ML-RBS Remote Battery Switch with Manual Only Control 12V DC 500A


Price:
$219.99

Shipping calculated at checkout

Stock:
In stock

Description

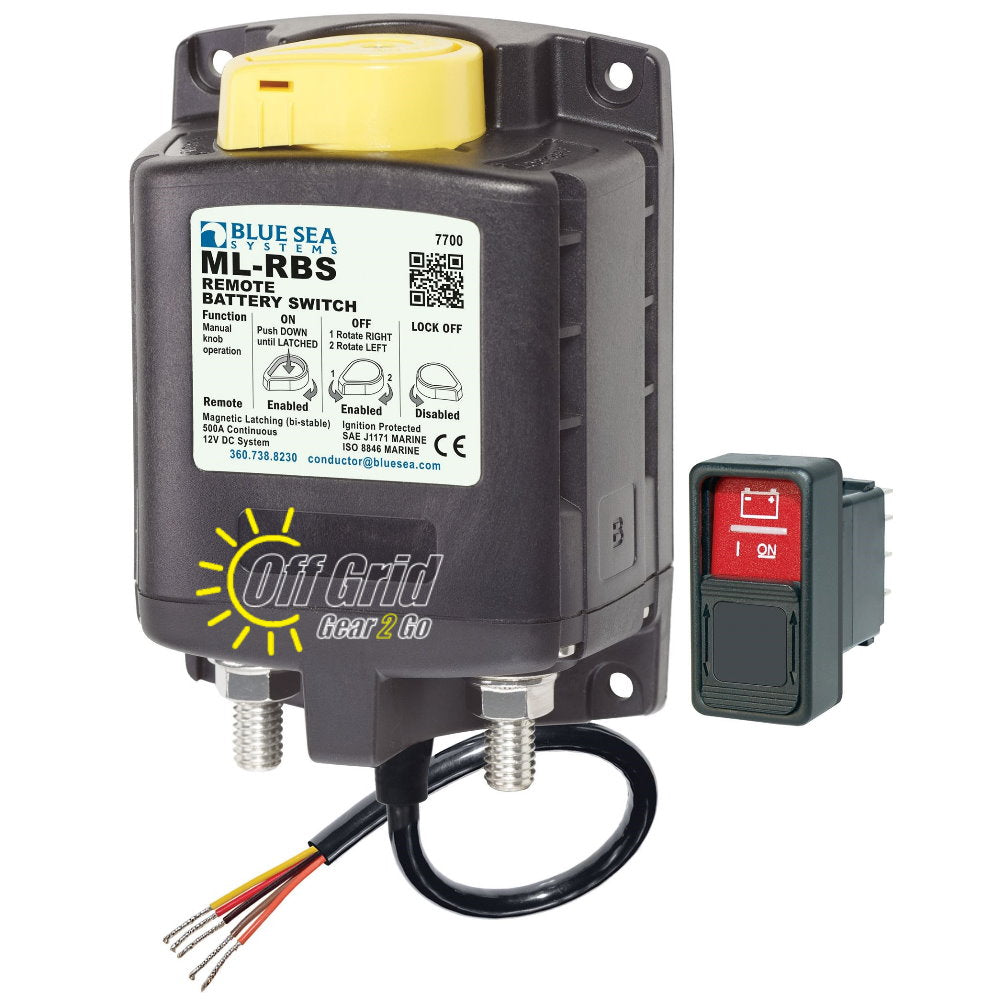

500 amp magnetic latching switch provides high amperage switching under load, manually or from remote locations. Includes Blue Sea 2145 Contura switch.

Blue Sea 7700 includes a manual control switch which provides an added level of safety control with or without power, and offering "Locked Off" capability for servicing. 500 Amp continuous rating Magnetic Latch ML-RBS draws no current during operation. LED output to remotely indicate when batteries are combined (optional LED required). 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance 7/8" (22mm) stud length accepts multiple cable terminals label recesses for circuit protection Silver alloy contacts provide high reliability for switching live loads.

  • ML-RBS Series Remote Control with included Contura Switch Blue Sea part number 2145 (ON/OFF/ON)
  • 500 Ampere continuous rating to support high-output alternators
  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Silver alloy contacts provide high reliability for switching live loads
  • Label recesses for circuit identification

Specifications:

  • Voltage: 12V DC
  • Amperage Operating Current: 0 mA
  • Manual Control: Yes
  • Control Circuit Voltage: 10.1-16.5 VDC
  • Continuous Rating: 500 Amps DC
  • Intermittent Rating: 700 Amps DC (5 minutes)
  • Cranking Rating: 1450 Amps DC (30 seconds)
  • Includes: Blue Sea SPDT 2145 Remote Control Contura Switch (On/Off/On)
  • Operating Temperature: Control: -10 to +50°C
  • Maximum Cable Size: 4/0 x 2
  • Terminals: Battery Connections: 3/8" size plated copper studs
  • Dimensions: 5.5" x 3.75" x 2" (H x W x D)
  • Weight: 1.75 lbs
  • Approvals: CE Marked
  • Warranty: Lifetime
