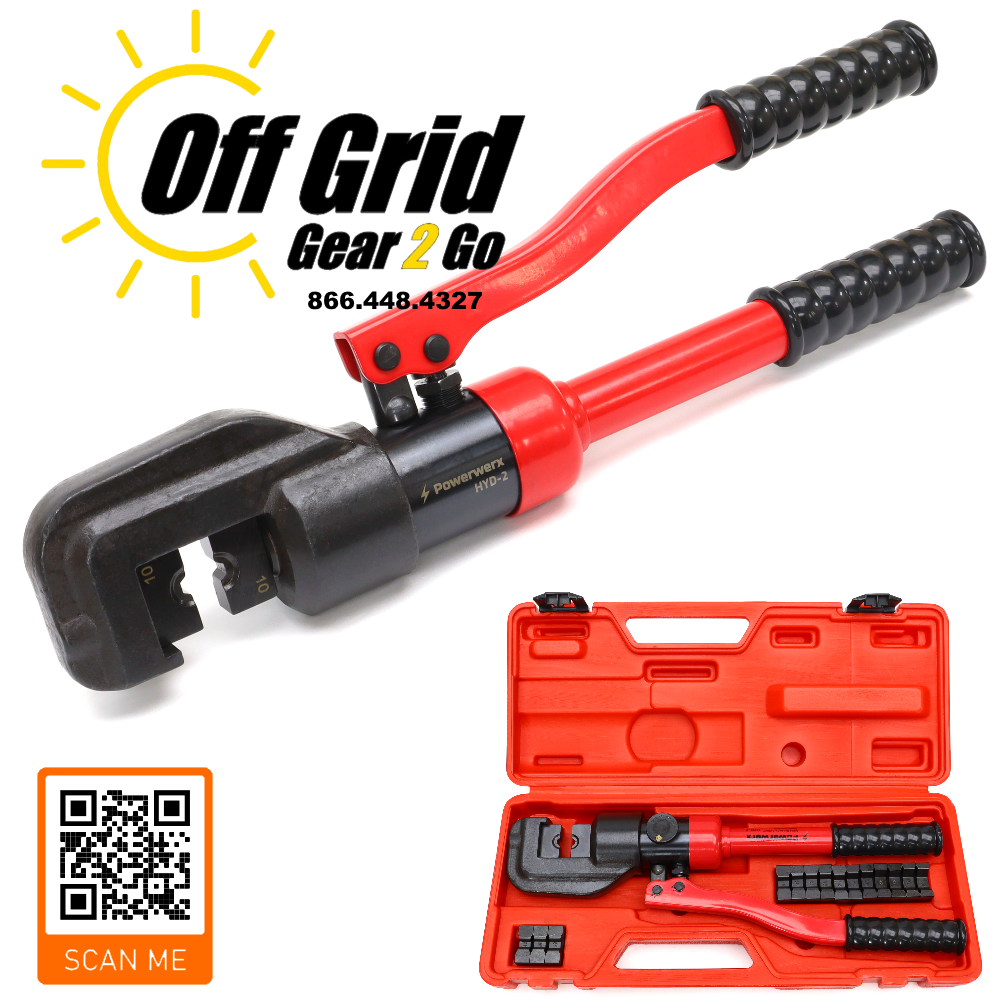

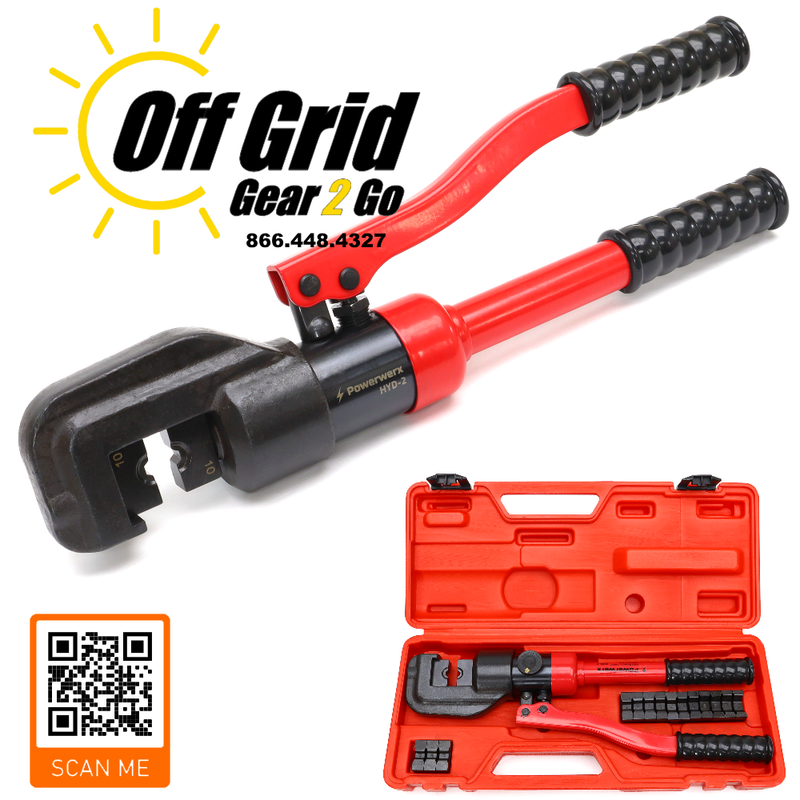

HYD-2 Hydraulic Crimping Tool for Large SB and Powerpole Contacts


Price:
$159.99

Shipping calculated at checkout

Stock:
Sold out

Description

Hydraulic Crimping Tool for Large SB and Powerpole Contacts


The ideal Hex crimping tool for Anderson Power SB® series contacts and heavy duty battery lugs. Features interchangeable dies for various size contacts providing a large range of crimps. Quick change die design allows for fast and easy size changes.

Operation:

  • Crimping Scope: 10 - 120mm (6 - 4/0 gauge)
  • Material: Copper/Aluminum
  • Max Working Pressure: 12T
  • Max Working Travel: 14mm (0.47in)

Physical dimensions and materials:

  • Weight: 3.2kg (7.1 lbs)
  • Overall Dimensions: 430mm x 120mm x 34mm (16.93in x 4.72in x 2.76 in)

Included Hexagonal Dies:

  • 10, 16, 25, 35, 50, 70, 95, 120mm

Anderson Power Products HYD-2 Cross Reference Chart

Anderson Series Anderson Part No Wire Gauge HYD-2 Tool Die Number
PP75/SB50 5900 6 10mm
PP75/SB50 5952 8 10mm
PP75/SB50 5915 10 10mm
SB120/PP120 1319 2 35mm
SB120/PP120 1319G4 4 25mm
SB120/PP120 1319G6 6 35mm
SB175/PP180 1382 1/0  35mm
SB175/PP180 1347 1 35mm
SB175/PP180 1383 2 35mm
SB175/PP180 1384 4 35mm
SB175/PP180 1348 6 16mm
SB350 917 1/0 35mm
SB350 907 2/0 70mm
SB350 916 3/0 70mm
SB350 908 4/0 70mm
