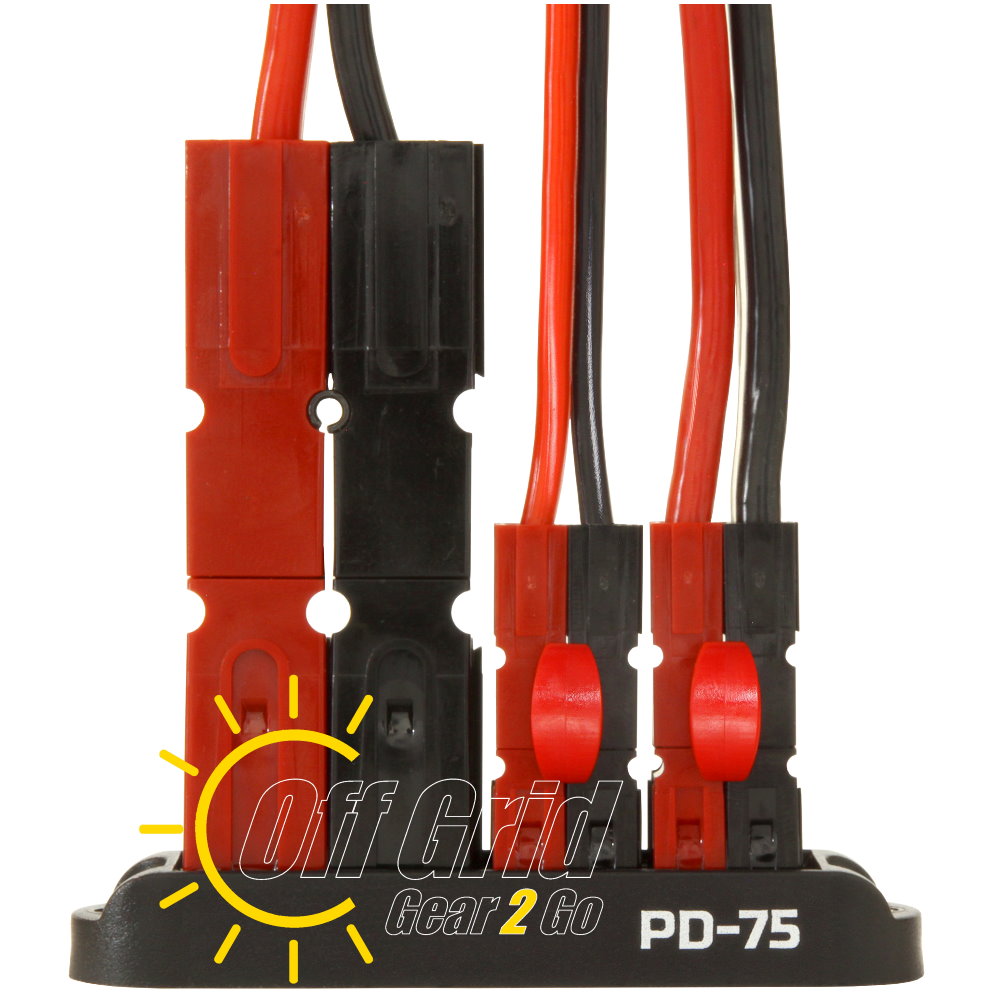

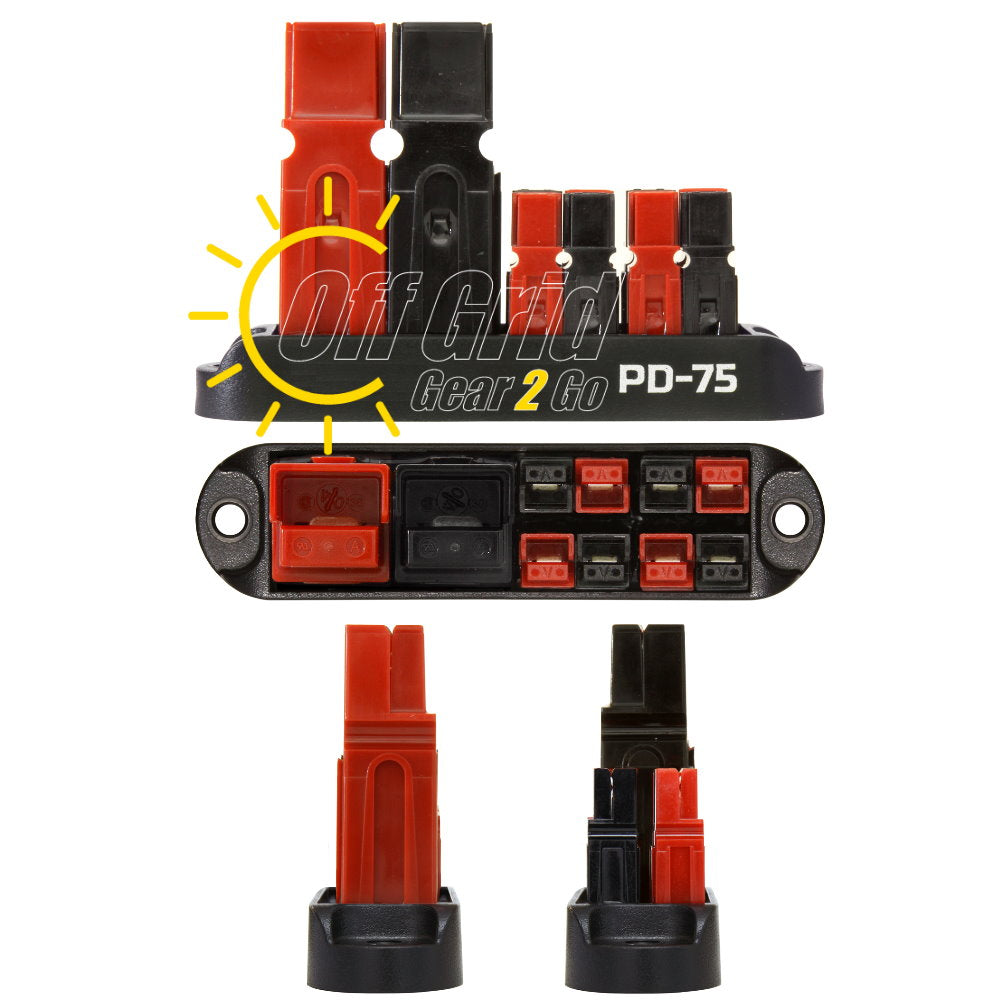

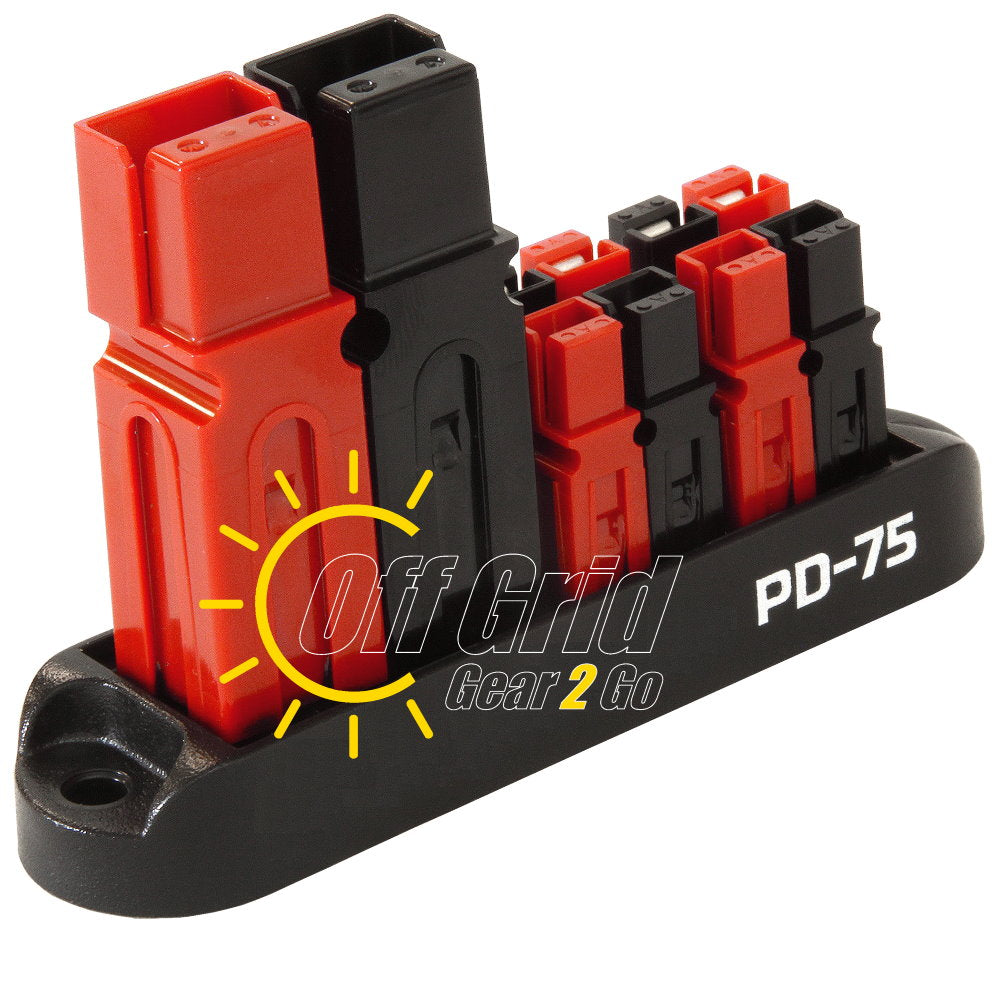

Powerpole PD-75 Distribution Block for 15/30/45A Connectors (75A Input) - 4 Position


Price:
$49.99

Shipping calculated at checkout

Stock:
In stock

Description

75 amp Powerpole input accepts 6 or 8 GA wire.  Distributes power to 4 positions of 15/30/45 amp Powerpole connectors.  Allows each output to use a retention clip for secure operation.  Thick copper bus bar construction.  Mountable for permanent installations.

Easy to use 75 amp input, 4 position output power distribution block for 15/30/45 amp Powerpole connectors. Input accepts 6 or 8 gauge wire. Convenient for professional installations, at the home or in the field. Proudly designed and manufactured in the USA.

Very Low Loss Design

Thick copper bus bar construction with heavy duty crimps provides negligible voltage loss and very low resistance, unlike competitor's products that use thin circuit boards traces with high voltage loss.

Retention Clips

New innovative design allows each Powerpole connection to use retention clips for secure operation. Prevents unintentional disconnection in any environment.

Mounting Holes

Mounting holes are provided for permanent, secure mounting on any installation.

Anderson Powerpole Connectors

Compatible and designed to work with your favorite Anderson Powerpole 15, 30 & 45 amp connectors.

High Current Capacity

Unique copper bus bar construction provides reliable, safe up to 75 amp continuous operation.

Clean Installations

Simple design allows all wires to run in a single direction for cleaner and trouble free installation.

Tech Specs

Connections 75A Powerpole Connector (input), 4 Powerpole Connectors (output)
Compatibility Mates with all 15, 30 & 45 amp Powerpole connectors (output). 75 amp Powerpole input.
Maximum Voltage 58VDC
Maximum Amperage 75A continuous (input), 45A continuous (each output)
Mountable 0.18" diameter mounting holes. Fits #8 screw.
Construction Sturdy ABS plastic base. Sealed internal bus bars.
Dimensions 2.33"W x 0.97"D x 1.32"H (59.2mm x 24.6mm x 33.5mm)
