EpicPWRgate Horizontal - 12V Backup Power System by West Mountain Radio


Shipping calculated at checkout

Sold out


West Mountain Radio's 3rd generation power gate product. A true solid state 40A backup power system. Connected loads will instantly switch to battery during an outage or power supply failure. Charges Gel, AGM and Lithium battery types. Optional direct solar input for battery charging. New Horizontal version allows for better cable management.
  • Epic PWRgate is a 12 volt backup power system rated at 40 amperes continuous from either a Power Supply or a Battery.
  • Connected equipment will instantly switch to battery during a power blackout or power supply failure.
  • Low loss PWRgate provides forward voltage drop of only 0.05 volts.
  • USB port access to monitor system or to change charge parameters.
  • Program for specific battery types.
  • Supports smart charging of either Lead Acid or Li-Ion battery charging up to 10A.

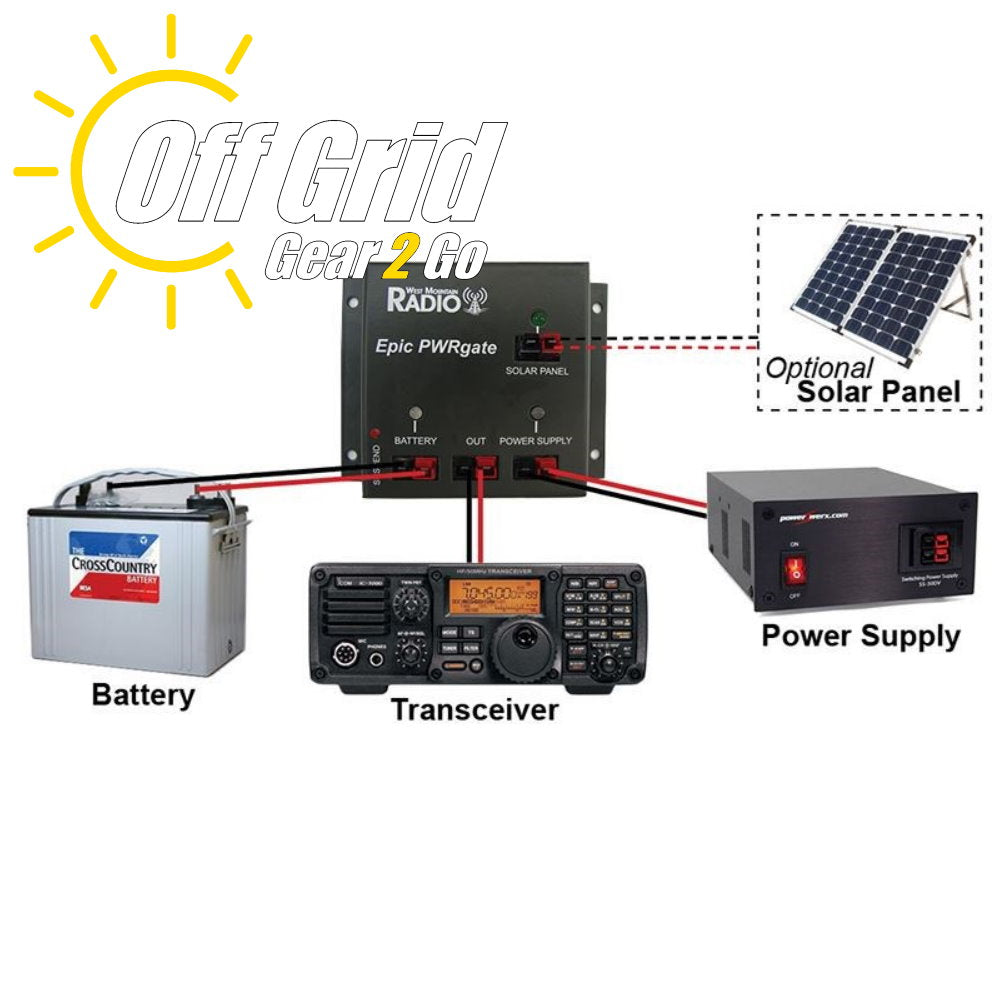

  • Optional direct solar panel input for battery charging (all chemistries). Solar panel VOC must be <= 30V.
  • Can be programmed for vehicle use to suspend charging when the alternator is off.
  • Complete LED status indicators.
  • Battery charge suspend button to eliminate current draw or charger noise for 30 minutes.
  • Optional temperature probe to control charging based on battery temperature.
  • Solid, durable construction in an aluminum case. Includes mounting holes for convenient and secure use in mobile units.
  • Uses Anderson Powerpole connectors.
  • Includes: Epic PWRgate Unit, USB-micro Cable, (4) Retention Clips, Owners Manual, Reference Card
  • Maximum Voltage: PS 16V / Solar 30V
  • Maximum Current: 40 Amperes
  • Voltage Drop: 0.05VDC
  • Connectors: Anderson Powerpole, 40A

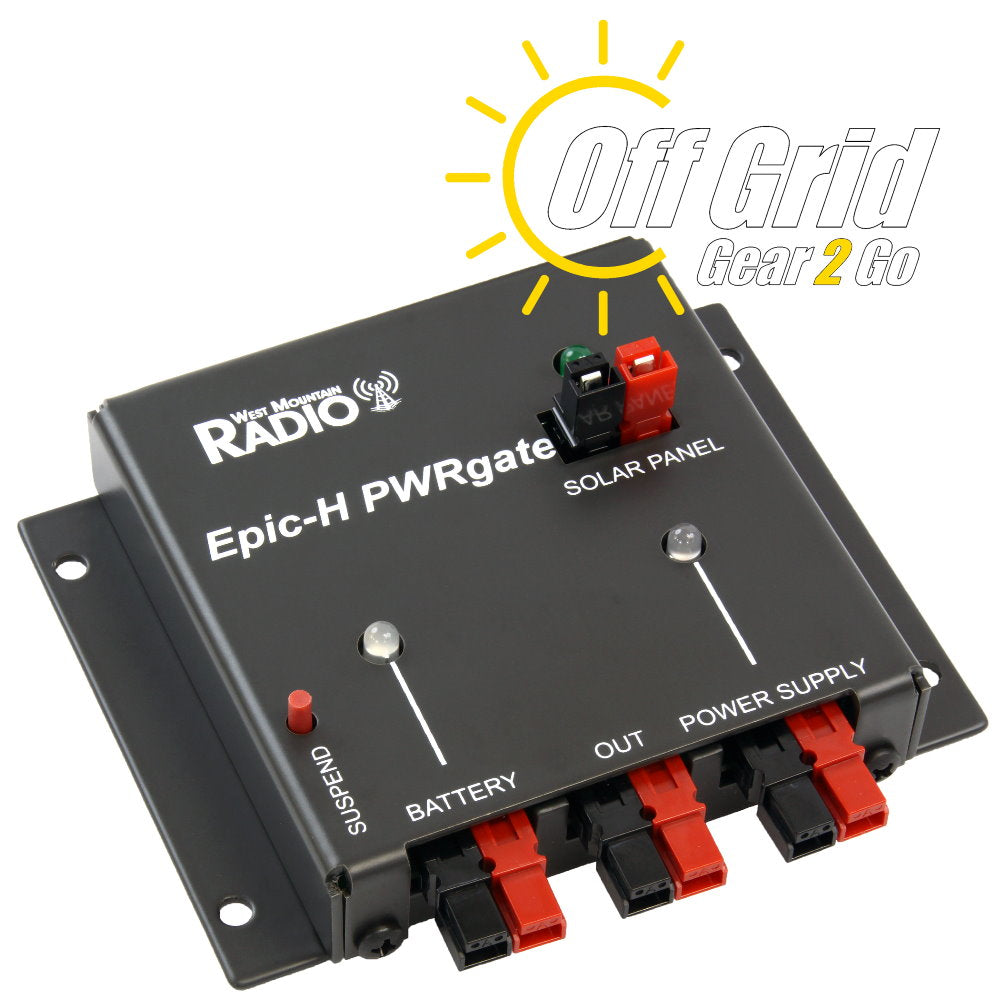

  • Connector Configuration: Horizontal Mounted (allows for better cable management)
  • Size: 4.5 x 3.375 x 1.25 in
  • Mounting Holes: Four - 0.175 d, #8 hardware
