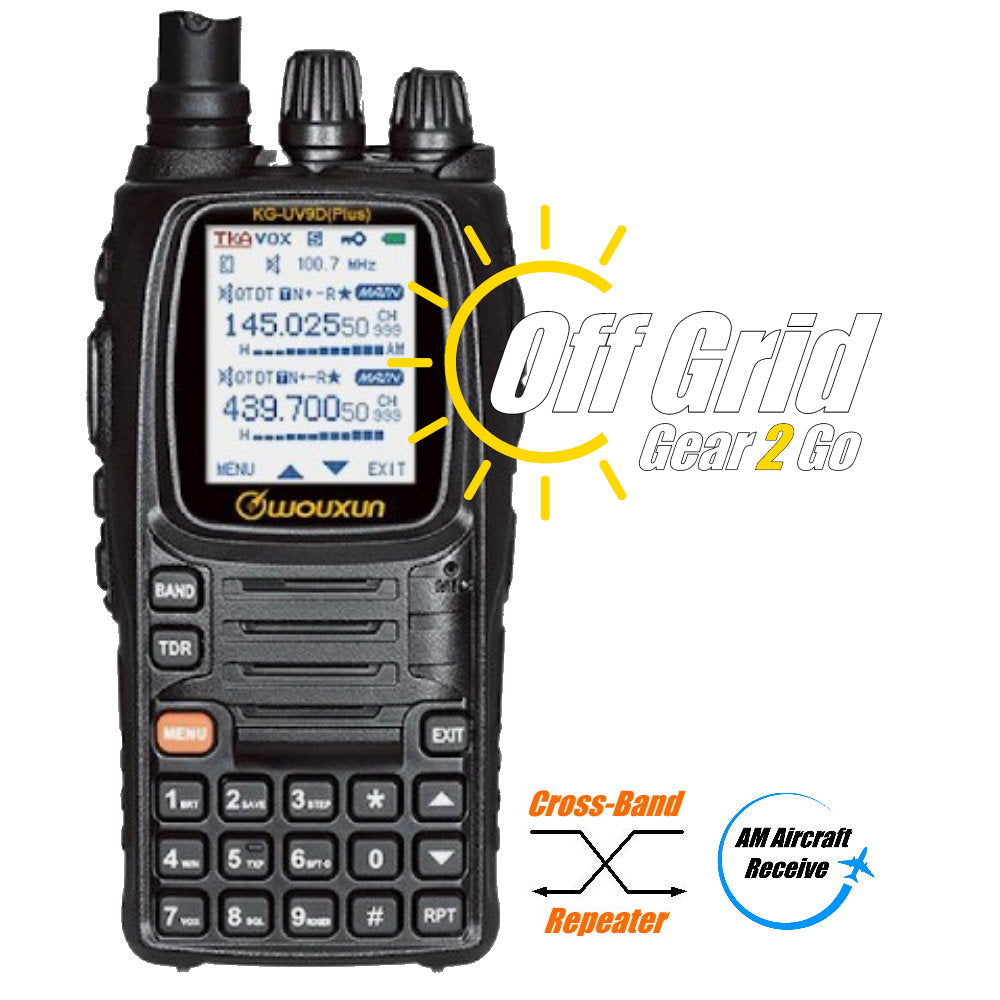

Wouxun KG-UV9D Plus 7-Band 999 Channel Dual-Band Handheld Radio with 3200 mAh Extended Battery

Save $20

Price:
$179.99 $199.99

Shipping calculated at checkout

Stock:
In stock

Description

KG-UV9D Plus features an impressive 7-band reception range, VHF/UHF dual-band, true dual simultaneous receive (V+V, U+U, V+U), now with Cross-band repeat function, large LCD color display, 999 channels, CTCSS/DCS encode and decode, and 25KHz/12.5KHz wide/narrow bandwidth selection.

KG-UV9D Plus Additional New Features
  • Cross-band two-way Repeat function
  • Cross-band one-way Repeat function
  • Repeater function, user adjustable Hang Time from 0.1 to 0.5 seconds
  • Selectable Speaker Audio ON/OFF during Repeat function
  • RX Green LED flashes every 5 seconds, user selectable On/Off

The KG-UV9D Plus is a compact, high-performance dual-band handheld amateur radio transceiver with large LCD color display providing up to 5 Watts of RF power on VHF and 4 Watts on UHF, along with high audio output (500 mW).

The KG-UV9D features extended operating time (over 24 hours), thanks to the included special order long life 3200 mAh high capacity Li-ion battery pack. In addition the KG-UV9D Plus features Full Duplex operation to transmit at the same time you are receiving on to opposite band.

A new color LCD screen displays everything you need to know and includes the IP55 water resistant rating. The KG-UV9D uses a new model Li-ion battery and drop in charger and is not interchangeable with previous Wouxun models.  All Wouxun speaker mics, lapel mics and earpieces (KG-UV8D, KG-UV3D, KG-UV6X, DB-16X) are compatible with the new KG-UV9D Plus.

Software programmable via the optional low cost USB programming cable or manually programmable via keypad.

KG-UV9D Plus Model Features

  • Large backlit color LCD display
  • True simultaneous dual receive (V+V, U+U, V+U)
  • 999 memory channels
  • 2.5 KHz channel step for VHF Band
  • 7-Band receive frequency range: 76-108 (FM Radio), 108-136 (AM), 136-180 (FM), 230-250 (FM), 350-400 (FM), 400-512 (FM), 700-823 (FM)
  • Dual band transmit frequency range*: VHF: 144-148 (FM), UHF: 420-450 (FM)
  • CTCSS/DCS Tones with User Defined Tone Capability
  • Standard SMA antenna connector
  • New heavy duty belt clip
  • Includes Exclusive 3200 mAh Li-Ion battery and Desk Charger
  • Free Programming Software download, requires optional (WXUSB) red colored programming cable

FCC Approval

The KG-UV9D Plus is certified for Amateur Radio use with a Part 97 approval.

Radio Warranty Policy

  • 12 month limited warranty on the radio against defects in materials and workmanship
  • 6 month limited warranty on the included radio battery and battery charger against defects in materials and workmanship

Standard Accessories Included with Every Radio

  • Dual band radio
  • Longer range 8" dual-band antennas
  • Extended life exclusive 3200 mAh high capacity li-ion battery pack (about 24+ hours operating time)
  • Intelligent desktop 2-4 hour rapid charger
  • Desktop charger AC power cord
  • Belt clip
  • Wrist strap
  • User manual
  • Programming software (Free Download)

Features

  • True Dual band Receive (VHF/UHF, VHF/VHF, UHF/UHF)
  • 8-Character Alpha-Numeric, Backlit Color LCD Display
  • Selectable high/low power settings (VHF: 5/2/1W) (UHF: 4/2/1W)
  • Includes exclusive extended life 3200 mAh high capacity li-ion battery
  • Includes intelligent desktop 3-4 hour rapid charger
  • Loud speaker audio output (500 mW)
  • Bright flashlight illumination function
  • Meets IP55 waterproof rating
  • English female voice prompts enable non-sighted operation (can be turned off)
  • 999 channels memories (shared)
  • VOX Function
  • Digital FM radio (76-108MHz) with automatic tuning and storing, radio frequency display, 18 FM memories in 2 banks
  • Wide/narrow bandwidth selection (25 or 12.5 kHz)
  • Power on message: Displays battery voltage or color logo
  • Audio Compander Circuit
  • AM Aircraft Receive
  • Windows PC programmable, free software available for download. Optional low cost cable (SKU: WXUSB) required.
  • Radio to radio cloning with optional cable (SKU: WXCLN)
  • Same channel: VHF TX & UHF RX or UHF TX & VHF RX available
  • 50 CTCSS/105 DCS tones with split tone capability
  • 16-Key DTMF encoding
  • User defined CTCSS tone capability
  • Stopwatch function
  • SOS function
  • Low-voltage voice prompt
  • Busy channel lockout
  • Selectable TX timer (from 15 to 600 seconds)
  • Selectable step sizes of 2.5, 5, 6.25, 10, 12.5, 25 kHz
  • Multiple scan modes including priority scan
  • Keypad lock (auto or manual)
  • Programmable by computer or front keypad
  • High contrast white backlit keypad.
  • Scrambler Option
  • Cross-Band Repeat Option

* Includes MARS/CAP modifications, ready for you to program.  Optional custom programming services are available starting at $20 per handheld radio.
