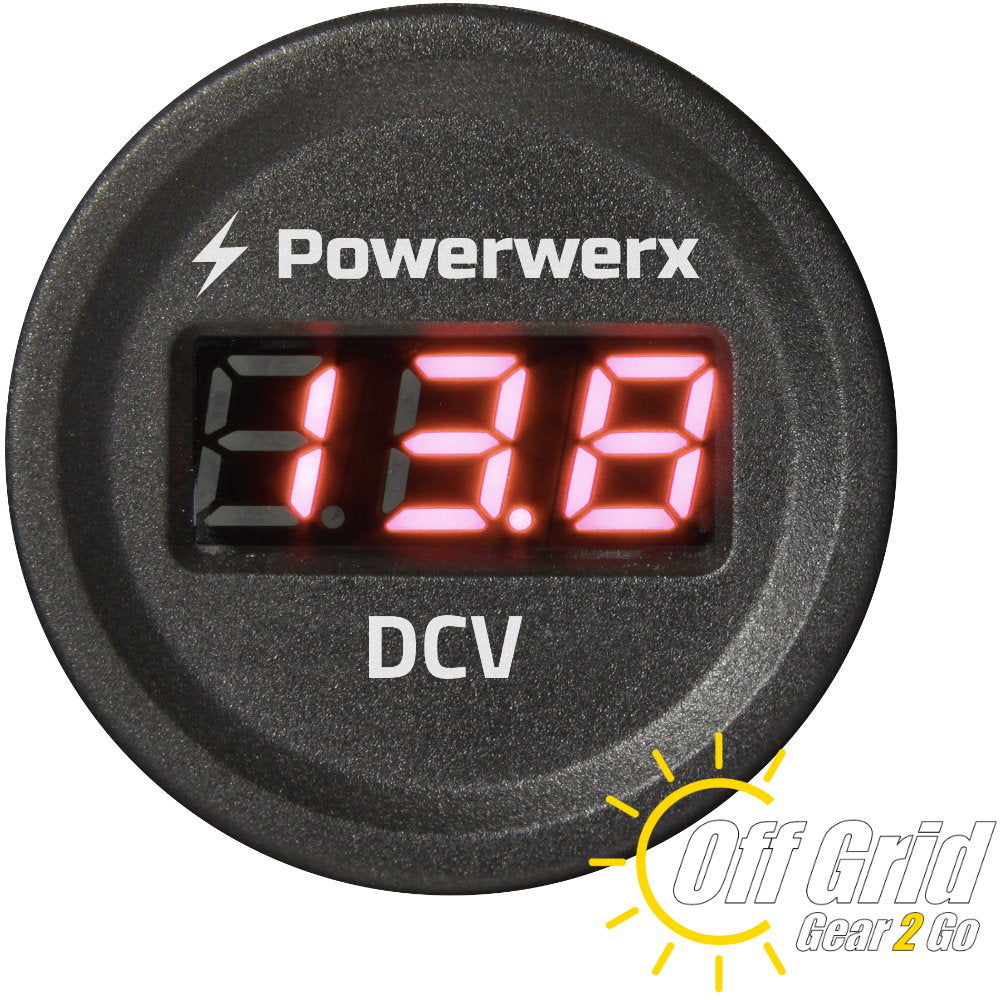

Panel mount volt meter features a bright easy to read red LED display. Monitor DC voltage from 5-30 VDC. Fits standard 1-1/8" diameter hole. Rear mounted F2 quick disconnect tabs.
Monitor and display current battery voltage. Rear mounted F2 quick disconnect tabs. Can be mounted in optional PanelPod1, PanelPod2, PanelPod3 housings or standard 1-1/8" diameter hole.
- Display: Red LED
- Voltage Range: 5-30 VDC
- Current Draw: 8 mA

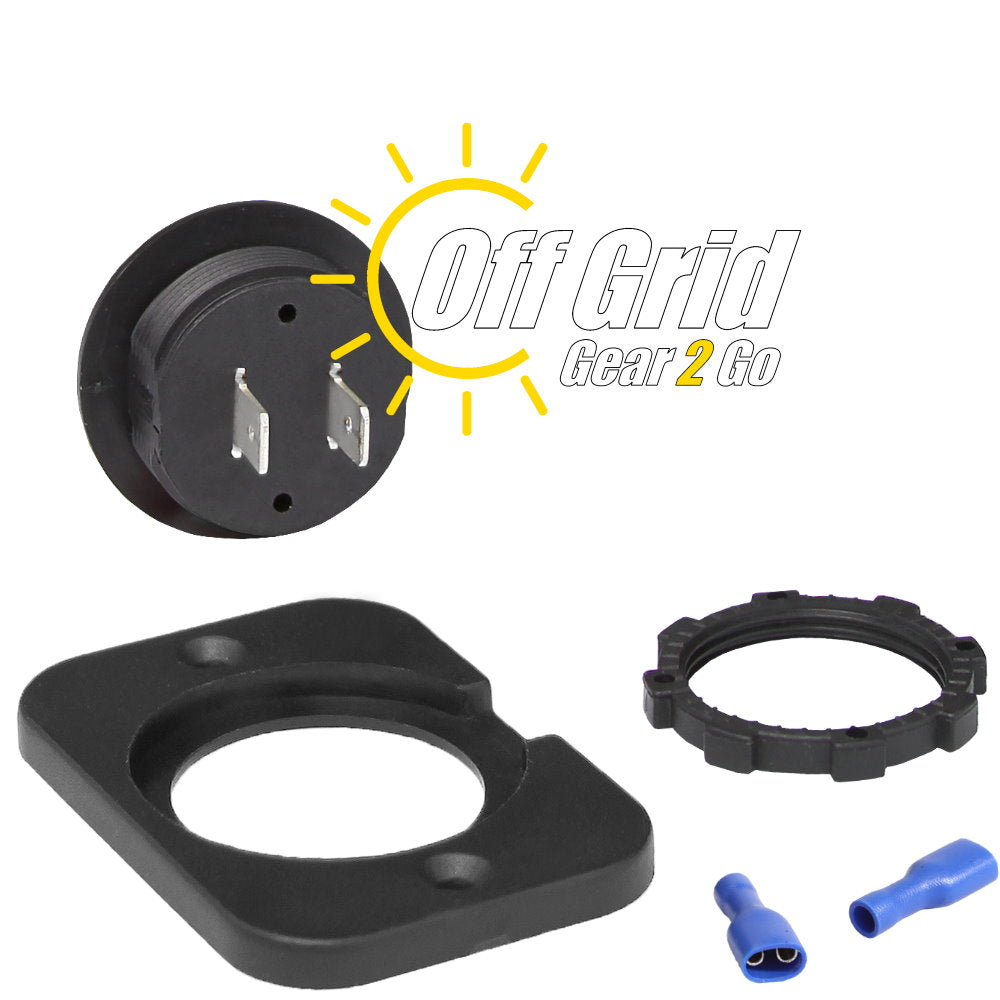

- Rear Connections: (2) 0.25" blade quick disconnect tabs
- Mounting: 1 1/8" diameter hole
- Rear housing depth: 7/8" (with quick disconnect tabs)
- Optional Mounting: PanelPod1, PanelPod2, PanelPod3, PanelPlate1, PlanelPlate2, PanelPlate3 and PanelPlate4
- Warranty: 6 months
