PanelDualVolt - Panel Mount Dual Digital Red Volt Meter for 12/24V Systems


Shipping calculated at checkout

In stock

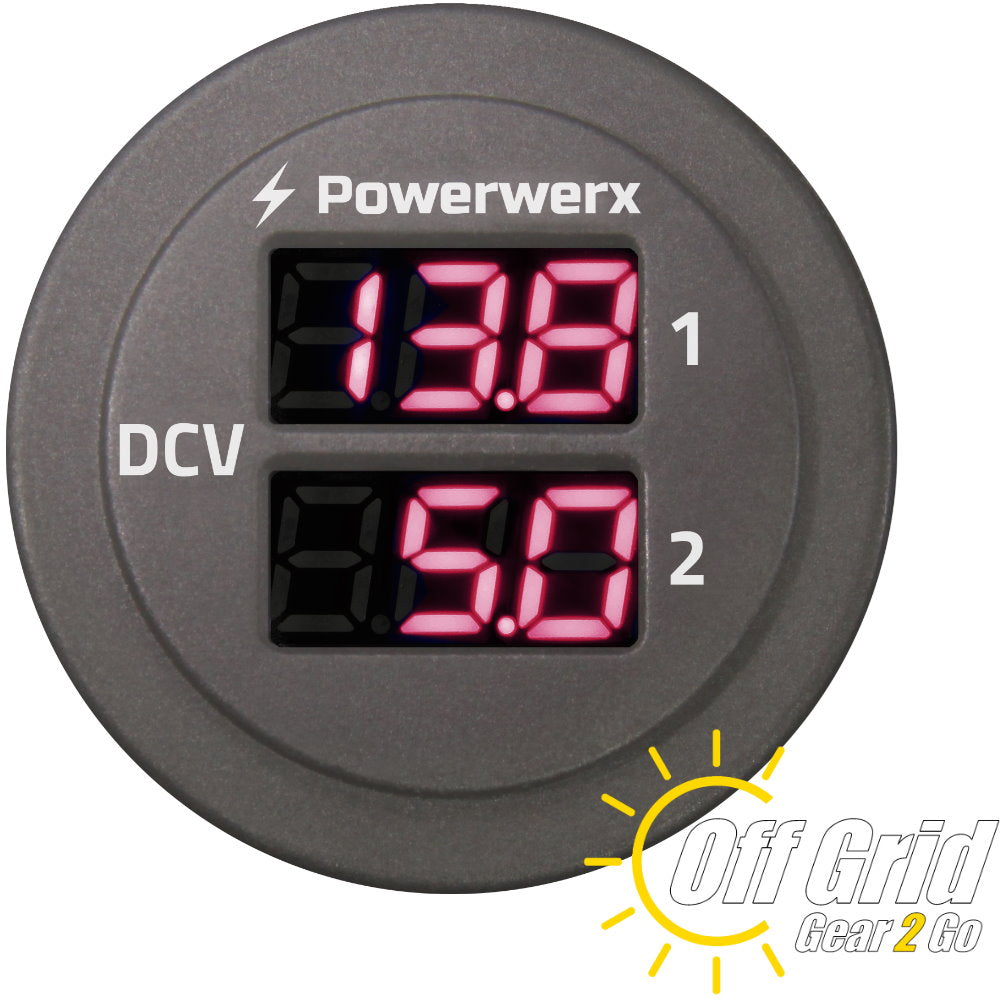

Displays 2 battery bank voltages simultaneously. Features a bright easy to read red LED display. Monitor DC voltages from 6-30 VDC. Fits standard 1-1/8" diameter hole. Rear mounted F2 faston tab connections.

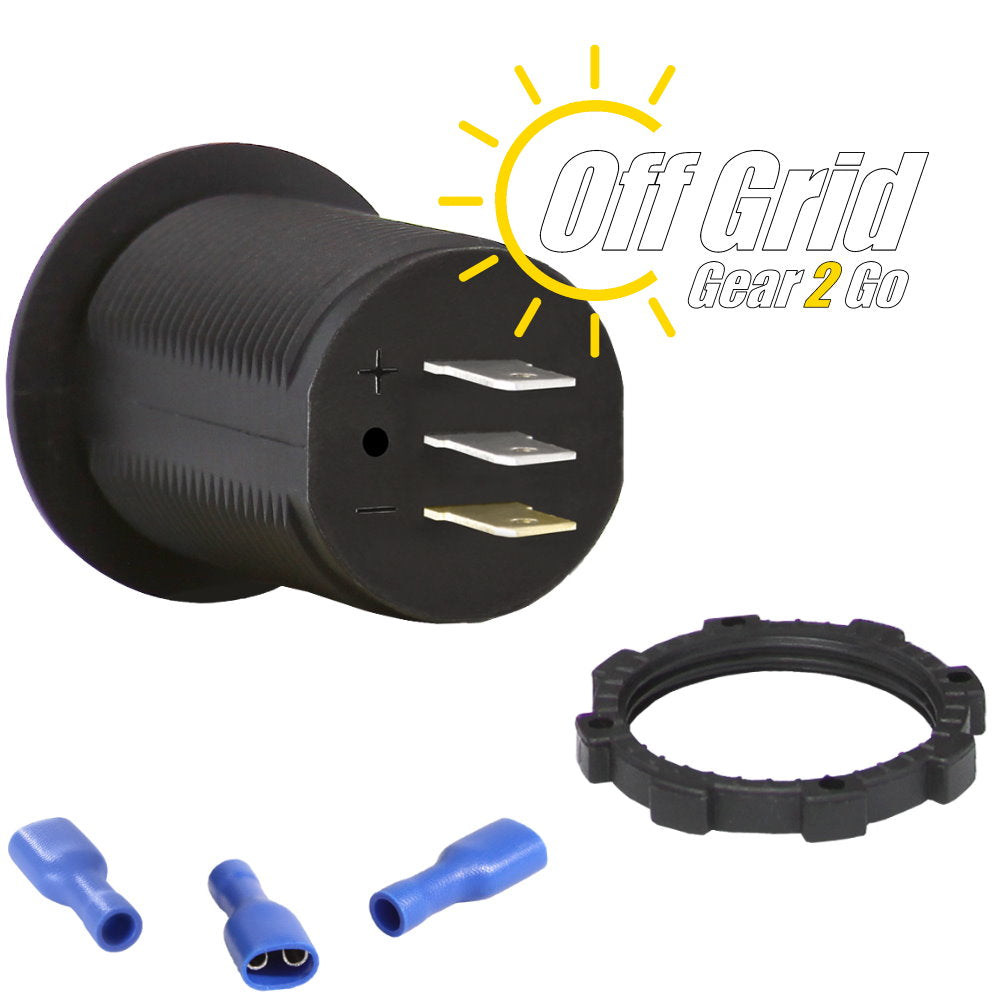

Monitor and display 2 battery bank voltages simultaneously. Three rear mounted F2 faston tab (blade type) connections. Can be mounted in optional PanelPod1, PanelPod2, PanelPod3 housings or standard 1-1/8" diameter hole.

  • Display Color: Red LED
  • Voltage Range: 6-30 VDC
  • Current Draw: 10 mA
  • Mounting: 1 1/8" diameter hole

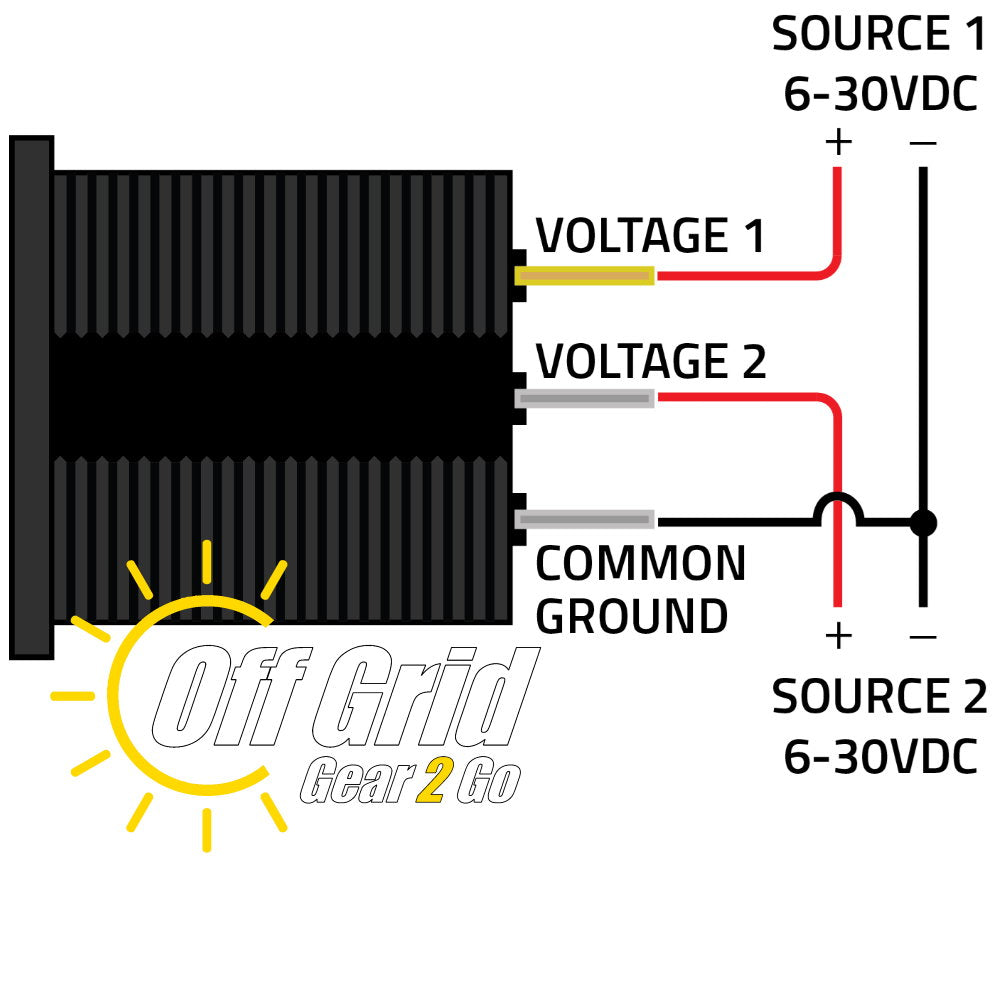

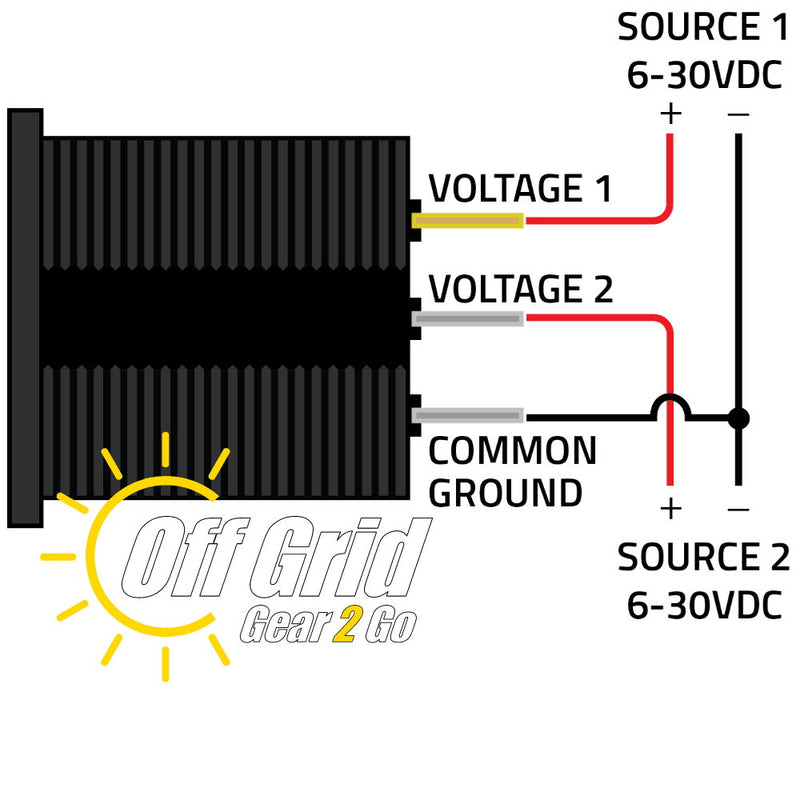

  • Rear Connections: (3) 0.25" blade quick disconnect tabs (Voltage 1, Voltage 2 & Ground)
  • Rear housing depth: 1 7/8" (with quick disconnect tabs)
  • Unit is powered by Voltage 1 tab
  • Warranty: 6 months
