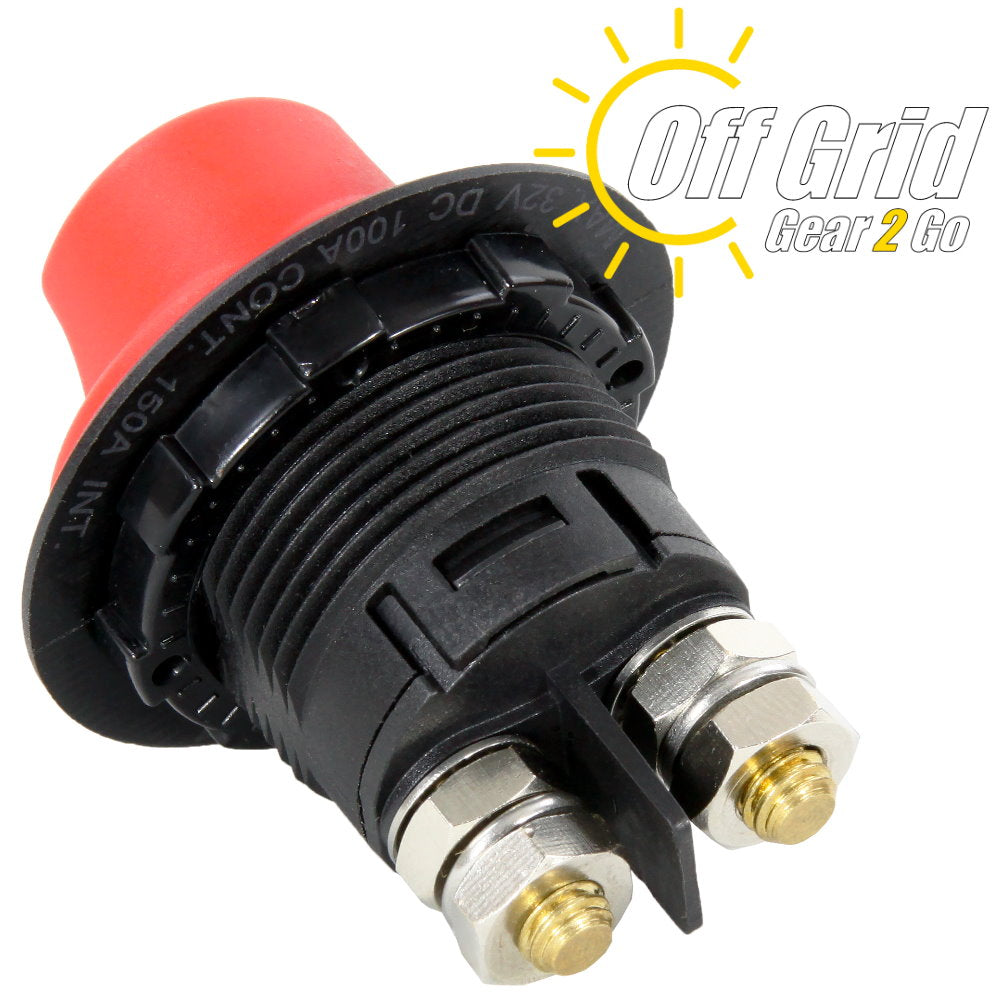

PanelHDSW Heavy Duty 100A Panel Mount ON-OFF Battery Switch


Price:
$29.99

Shipping calculated at checkout

Stock:
In stock

Description

Compact Battery Disconnect Switch mounts into standard 1 1/8" panel mount hole. Single circuit ON-OFF switch is rated up to 125A.

Features

  • Ultra Compact Battery Disconnect, easy to Install
  • Selectable Battery (ON/OFF) Design
  • Mounts in standard 1 1/8" Panel Mount Hole

Specifications

  • Switch Type: 2 Position (Single circuit ON / OFF)
  • Amp Rating: 100A Continuous Rating (125A intermittent / up to 1 minute)
  • Max Voltage: 32 VDC
  • Mounting: 1 1/8" Standard Panel Mount Hole
  • Rear housing depth: 1 1/2" (including terminal studs)
  • Terminal Stud Size: 1/4"
  • Battery Inputs: 1 (ON/OFF)
  • Overall Dimensions: 2 1/8" L x 1 3/8" W x 1 3/8" H  (including rear lock nut)
  • Dimensions behind mounting Plate: 1 1/4" L x 1 3/8" W x 1 3/8" H (including rear lock nut)

Note: If using this product with any of the optional panel plates, this product's flange is slightly larger and will overhang over the edge of the panel plate.
