PS-3005D Opek 30 Amp Digital Switching Power Supply


Price:
$159.99

Shipping calculated at checkout

Stock:
In stock

Description

The OPEK OP-PS3005D power supply is designed to run almost any 12 Volt Power electronic product with clean and reliable power. Variable 9-15V DC output via front mounted adjustment knob.  Power your DC devices using either the rear mounted 1/4″ binding posts or front mounted dual Powerpole connectors.  Rated for 28A continuous and 30A surge.  Comes with a 2 year limited warranty.

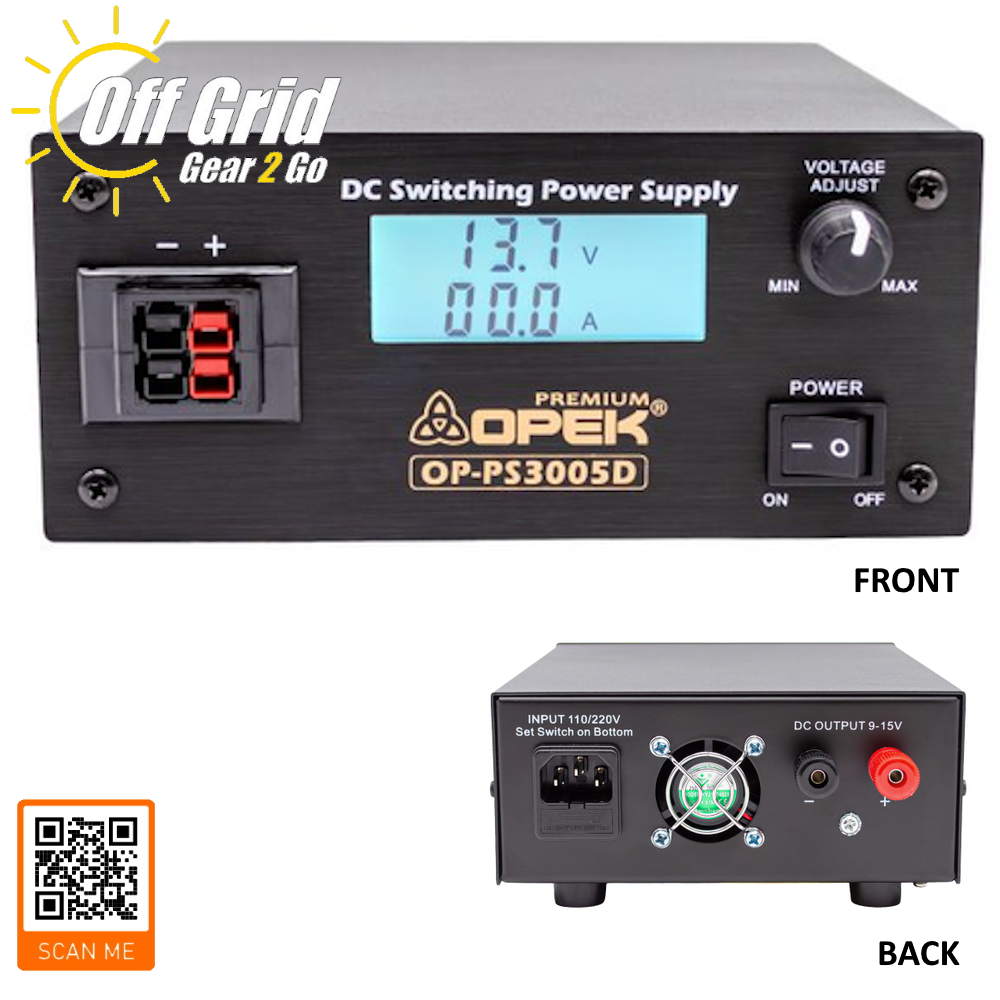

Digital Display

The OP-PS3005D comes standard with a blue backlit LCD display that shows DC output Volts and Amps

Variable Output Voltage

User select-able variable output from 9-15V DC.  Middle detente set to 13.8V DC. Rated for 28A continuous and 30A surge at 13.8V DC.

Dual DC Power Outputs

Power your radio and equipment with either the rear mounted 1/4″ binding posts or front mounted dual Powerpoles.  The rear mounted binding posts can also accept standard banana plugs.

Input Voltage

The OP-PS3005D has a universal AC input allowing for 100 to 240V AC (50/60Hz). This is select-able via the bottom mounted switch.

Cooling

The OP-PS3005D power supply is cooled by convection and forced air cooling. That is normal airflow around the power supply in combination with a temperature controlled fan to improve cooling at higher levels of use. The fan is always activated and the speed is controlled by a sensor.  When the temperature rises, the fan speed increases.

Applications

  • Land Mobile Radio Base Stations
  • Communications Systems
  • Security Systems
  • Test Equipment
  • Plotters
  • GPS Receivers
  • Automotive and Marine Displays
  • DC Computers
  • 12 Volt Lighting Systems
  • OEM Applications

2-Year Limited Warranty
