Description
Features:
- 2/5 DTMF tones
- VOX (Voice Operated Transmit)
- Channel Memory or Frequency Scan
- White Backlit Dot-Matrix LCD Display
- Dual Band, Dual Display, Dual Standby
- 200 Programmable Channel Memories
- 24 FM Analog Commercial Radio Memories
- 3200mAh Li-Ion Extended Rechargeable Battery
- 1750Hz tone (primarily for European repeater use)
- Kenwood 2-Pin Style Microphone/Programming Jack
- Multiple Power Levels (2W Low / 5W Medium / 10W High)
- Audio Scrambler (not legal for use on U.S. Amateur Radio Frequencies)
If requested at time of purchase, the radio can include our optional MARS/CAP modification for extended transmit frequency range at no extra charge, ready for you to program.
Optional additional custom programming services (click here) are available starting at $20.00 per handheld radio (using one of our standard frequency templates) - custom additional channels programmed for only $1.00 per channel (click here to add additional channels to a standard template).
Specifications:
General |
|
Channel |
200 Programmable Memories |
Operating Voltage |
7.4V DC |
Operating Temperature |
14°F ~122°F |
Weight |
0.5 lb (Battery and Antenna Included) |
Radio Dimensions |
4.76" H x 2.32" W x 1.34" D |
Transmitter |
|
Frequency |
144-148/420-450MHz (Transmit) 136-174/400-480MHz (Receive) |
Power |
10W (VHF)/9W (UHF) |
Maximum Power |
10W |
Spurious Power Level |
≤-15dB |
Modulation Noise |
<-40dB |
Modulation Distortion |
<5% |
Frequency Stability |
5ppm |
Max Frequency Deviation |
<±5KHz |
Current |
≤1600mA |
Audio Response (300-3400Hz) |
+6.5~-14dB |
Adjacent Channel Power |
≥60dB |
Receiver |
|
Sensitivity |
≤0.2uV |
Occupied Bandwidth |
≤16KHz |
Selectivity |
≥65dB |
Intermediation |
≥55dB |
Audio Power |
>500mW |
Audio distortion |
≤10% |
Frequency Stability |
5 ppm |
Current |
Standby: 60mA, |
Audio Response (300-3400Hz) |
+7~-12.5dB |
Radio Box Contents:
1* AC Adapter
1* 110v Desktop Charger
1* 57 Page User’s Manual

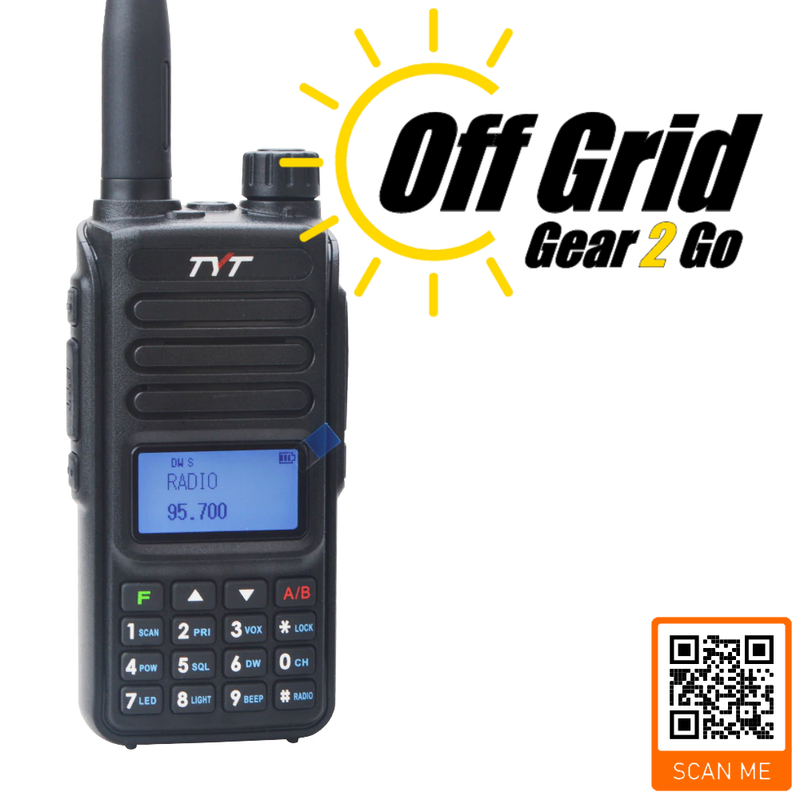

1* TYT TH-UV98 10W Radio
1* SMA-Male High Gain Antenna

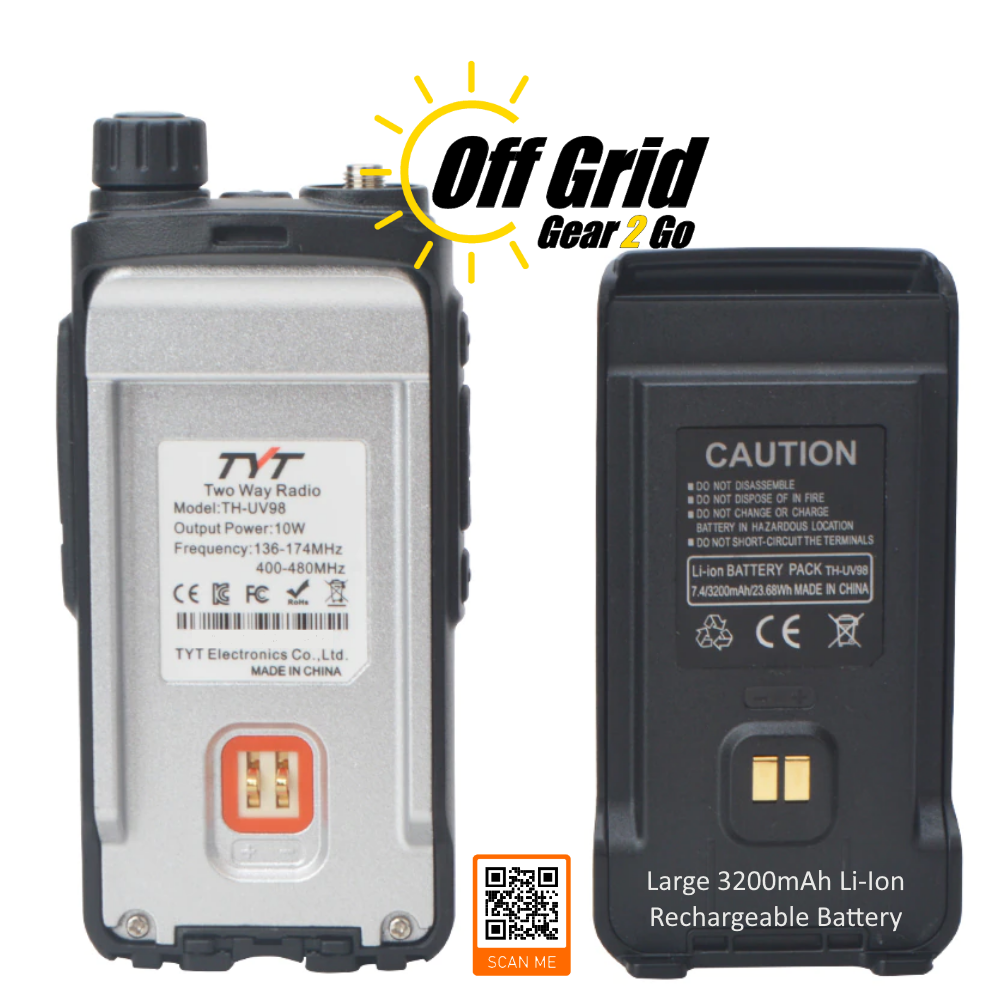

1* 3200mAh Li-ion Battery Pack w/Belt Clip
