WeBoost Home Complete Cellular Signal Booster

Overview

The weBoost Home Complete Signal Booster is the improved version of the weBoost Connect 4G-X. It has a completely redesigned aesthetic, so it looks great in your home, and uses RG11 cables with standard F type connectors, so it's easier to install.

The uplink and downlink powers have been increased, so you get better performance even further away from the cell towers, so it's perfect for very rural areas, and the booster will provide even more coverage if you happen to have a strong outside signal.

If you need to cover your whole home with boosted signal and are looking for a great-looking product at the right price, then the weBoost Home Complete is a great option for you.

Coverage Area

Many variables impact the total coverage area of a signal booster system. The following are estimates only and may not be accurate in any individual situation.

• If you have an existing strong 5-bar outside signal, you may get up to 7,500 sq ft of coverage inside*
• If you have an existing 3 to 4-bar (-90 dB) outside signal, you may get up to 4,000 sq ft of coverage inside*
• If you have an existing 1 to 2-bar (-100 dB) outside signal, you may get up to 2,000 sq ft of coverage inside*

* The actual coverage area of a signal booster is dependent on many factors including existing outside signal strength, obstructions between you and the cell tower, the materials used in your home or office, the layout of the area you need to cover with a boosted signal, and other factors. The approximate coverage areas listed above are estimates. Actual coverage area will vary based on these and other factors.

Supported Carriers

The weBoost Home Complete supports virtually all of the networks and carriers in the United States and Canada. For other locations, please consult the frequencies listed below to see if this product will work for you.

Here is a more detailed breakdown of the carriers, networks and frequencies boosted by this kit:

• AT&T 2G, 3G, 4G HSPA+, 4G LTE & 5G
• Verizon 2G, 3G, 4G LTE & 5G
• Sprint 2G, 3G & 4G LTE
• T-Mobile 2G, 3G, 4G HSPA+ & 4G LTE
• US Cellular 2G, 3G & 4G LTE
• All other carriers using 700 MHz, 800 MHz, 1900 MHz, and AWS 1700/2100 MHz frequencies

Please Note: This signal booster kit will not work in most European, Asian, and African countries because the frequencies used there are different than those boosted by this equipment.

Accessories

In areas that have lightning or thunderstorms, we recommend an optional lightning protection kit. The lightning protector has a gas discharge element that severs the connection to the amplifier if there is a surge from the outside antenna.

The included directional outside antenna comes with mounting hardware for a pole. If you don't have an existing pole to mount the outside antenna to, you should acquire a suitable pole prior to beginning your installation.

Installation Overview

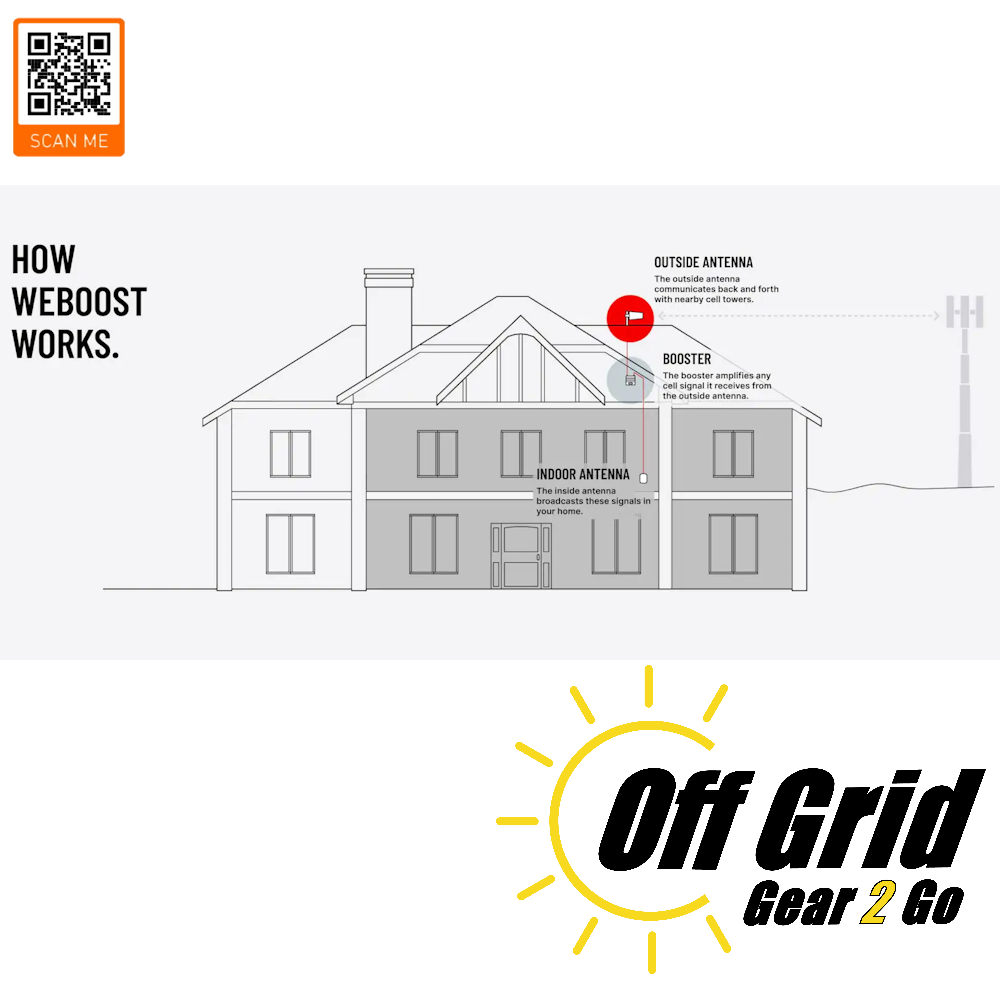

The weBoost Home Complete is fairly easy to install for anyone who's a bit handy, but if you're not comfortable getting up on your roof to mount an antenna, it may be best to find an AV installer or a handy friend. We always recommend doing a soft install where you don't permanently mount anything or drill any holes until you know the system will work for you and you've identified the best locations for the antennas. To install, just follow these 4 steps:

1. To start, you'll need to find a place on the roof of your home or office to mount the outside antenna. With a directional outside antenna, it's best to figure out which direction it will need to be pointed before permanently mounting the antenna (we'll cover how to do this in step 4). Connect either the 60 or 75 ft coax cable (whichever is better for your cable run) to the antenna and run it into the house. You may be able to enter through a vent or a soffit, otherwise you may have to drill a hole.
2. With the cable inside, connect it to a lighting protector (if you purchased one), and then to the amplifier. To the inside antenna port on the amplifier, connect the other coax cable and then connect the inside antenna. If you have an attic, the easiest installation method is typically to have the amplifier and inside antenna in the attic with the panel antenna face down on the floor in the middle of the house. If you don't have an attic, you can mount the panel antenna on the ceiling in the middle of the house, on a wall, or placed on a shelf with the attached kickstand.
3. Once all of the components are connected, plug in the amplifier and see if you get any error lights. For any errors, consult the manual or contact WeBoost for help.
4. For best results, you'll need to aim the directional outside antenna towards your closest cell phone carrier's tower (understanding that your closest cell phone tower may not be the one providing you with service on your cell phone plan).
5. Start with the antenna high on the roof pointed in one direction. Turn on the system and have an inside helper inside stand about 10 ft. from the inside antenna and take a signal reading with their phone, ideally with it in field test mode. Rotate the directional antenna 45 degrees.  After the waiting 60 seconds, the person inside should take another signal reading, and then you can repeat the process. After you've tried in all directions (8 total), mount the antenna facing in the direction with the strongest signal. If possible, also mount the antenna on that side of the home or office so that it's pointing away from the building and not over the building.

The included manual is very helpful and we recommend reading through it before beginning the installation. If you run into any issues, feel free to contact WeBoost directly for help.

Benefits

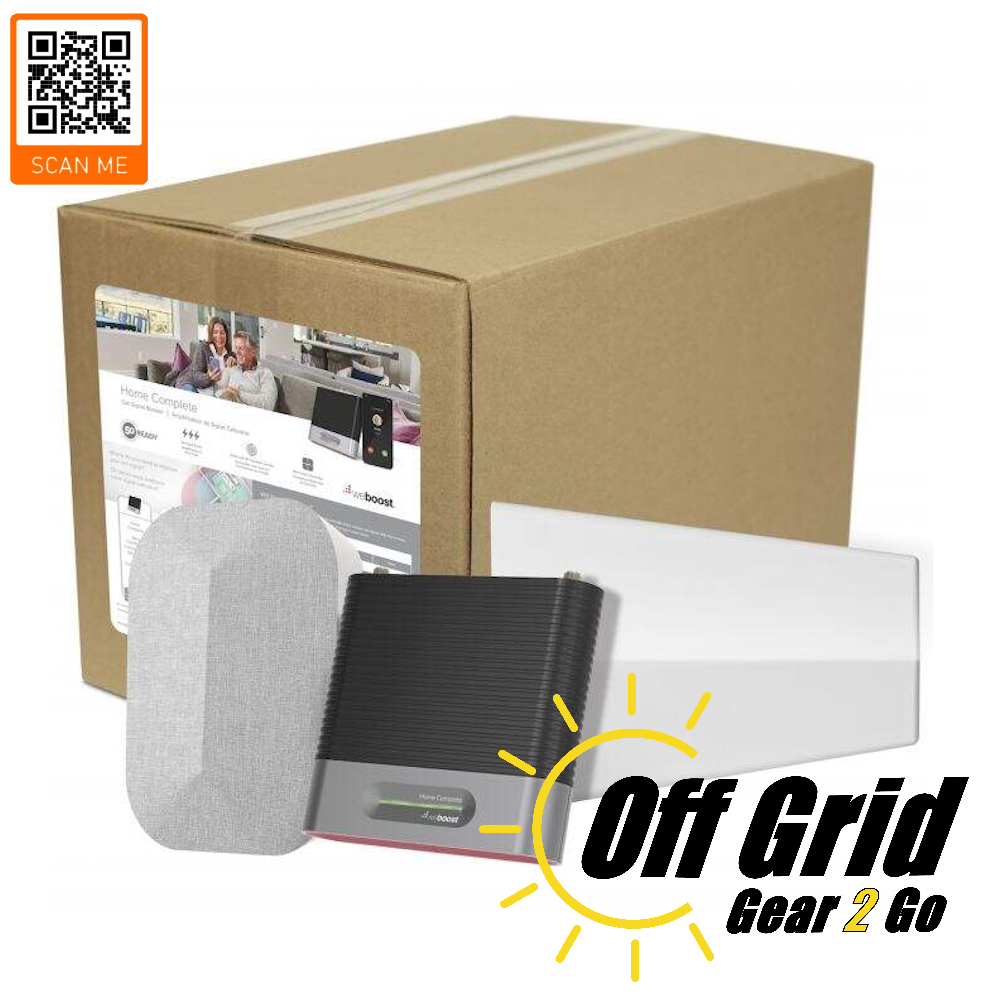

• Everything you need is in the box, just set it up and go
• Reduces dropped calls and increases data speeds
• Works wirelessly - so you can use your cell phone like you always do
• Supports multiple phones and data devices simultaneously
• Adjustable per-frequency gain control makes installation easier
• Contains carrier protection technologies to guard against overload and oscillation
• Amplifies the signal both to and from the cell carrier
• Boosts 800 (850) MHz Cellular, 1900 MHz PCS, 1700/2100 MHz AWS, and both Verizon 700 MHz LTE and AT&T 700 MHz LTE
• Extends the battery life of your phone
• Made in the USA!
• FCC and IC type accepted
