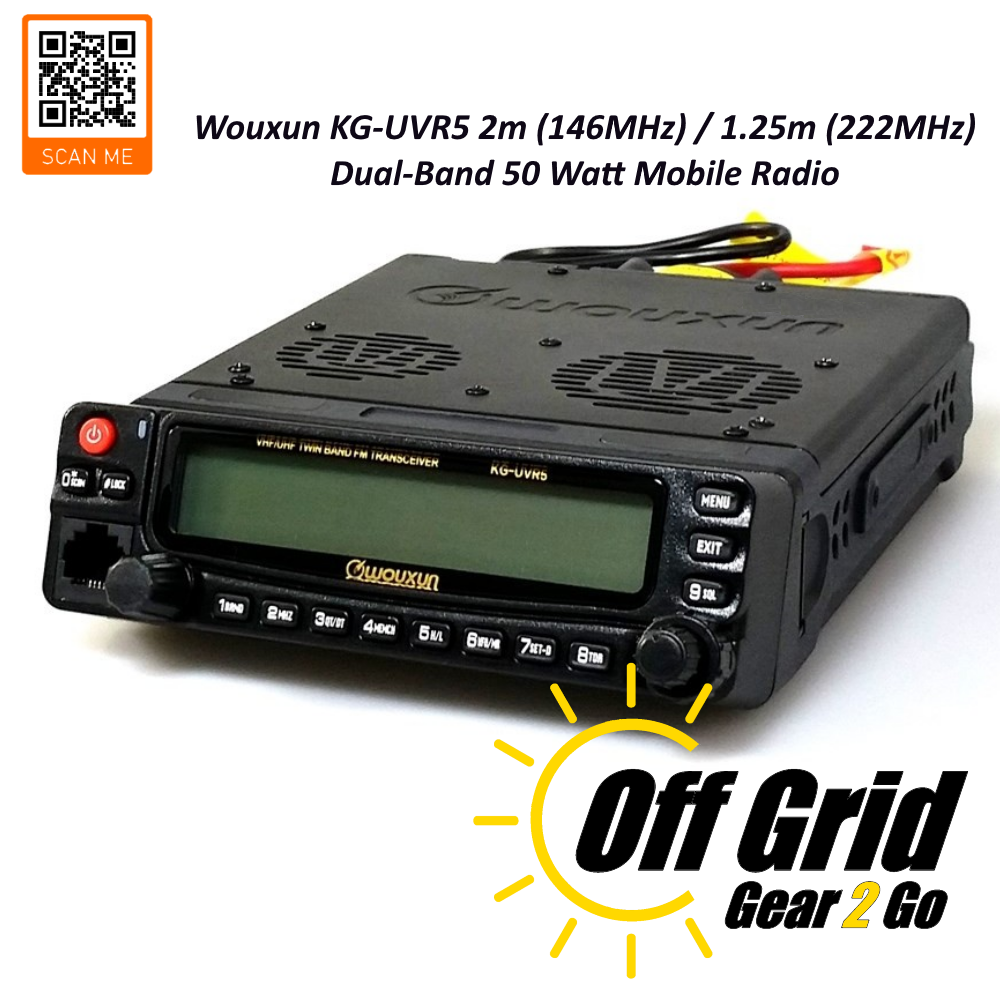

Wouxun KG-UVR5-222 Base/Mobile Two Way Radio


Price:
$299.95

Shipping calculated at checkout

Stock:
In stock (5 units), ready to be shipped

Description

MAIN  FUNCTIONS
  • 999 Memory Channels
  • Unidirectional or Two-Way Cross-Band Repeater
  • Dual Frequency Display
  • Dual Independent Operation
  • Remote Control Function
  • Voice Scrambler, DTMF Encode & Decode
  • Front Panel Separation from Radio Body for Flexible Operation
  • Standard CTCSS/DCS Encoding and Decoding
  • Non-standard CTCSS/DCS Settings Available
  • Same-band repeat available (with two combined radios)
  • Dual track and multi-way loudspeakers

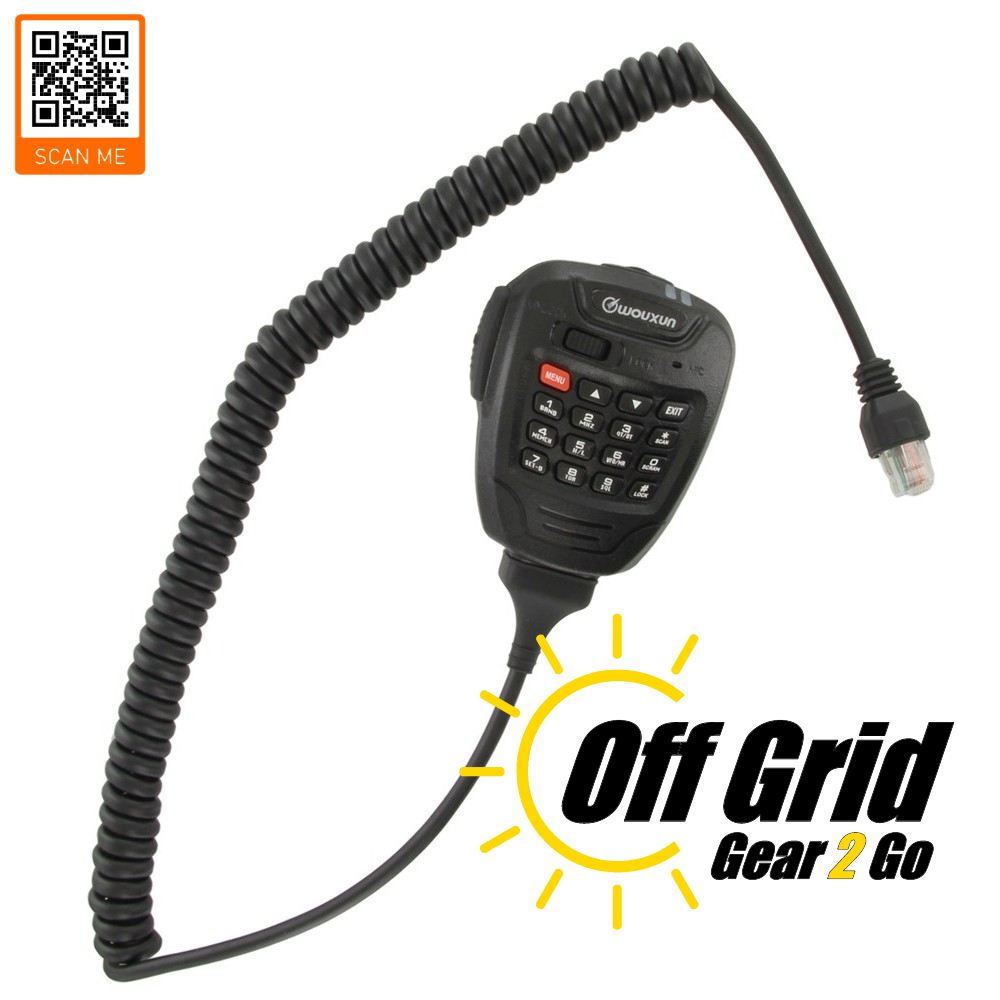

  • Hand microphone DTMF with loudspeakers
  • Caller ID display
  • Multiple back light color selectable
  • Scan channel adding /deleting
  • Grouping channel scanning
  • Group calls, all calls and selective calls
  • Priority channel scanning
  • APO power management
  • Wide / Narrow bandwidth selectable
  • Voice guide
  • Automatic temperature detection
  • Stun/kill function
  • Single audio pulse frequency
  • Multiple scanning choices
  • Remote control setting available
  • Multiple settings for cooling fan
  • Superheterodyne Receiver Type


TECHNICAL SPECIFICATIONS

Integration
Frequency Range

   RX and TX 136-174MHz & 200-320MHz *
   FM Commercial 65MHz-108MHz

Frequency Step Sizes
5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz
Programmable Channels 999
Work Mode F2D / F3E
Operating Temperature -20℃~+60℃
Voltage 13.8VDC±15%
Antenna Impedance 50Ω
Radio Weight 3 lbs., 3 oz. / 1438 g
Size 5.52" x 1.74" x 8.15" (140 x 44 x 207 MM)



Receiver
  Wide Narrow
Adjacent Channel Selectivity ≤70dB ≤60dB
Inter Modulation ≤65dB ≤60dB
Spurious Response ≤70dB ≤70dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Signal to Noise Ratio ≥45dB ≥40dB
Audio Distortion ≤5%
Speaker Audio Power transceiver≤3w ,
hand microphone≤1w
Sensitivity UHF/VHF:0.25µV(12dB SINAD)



Transmitter
Adjacent Channel Power ≥70dB ≥60dB
Type of Modulation 16K F3E 11K F3E
Spurious ≥60dB ≥60dB
Signal to Noise Ratio ≥40dB ≥36dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)



* If the customer requests it, we will include the MARS/CAP modification for this radio at no extra charge before shipping, allowing it to be used on the Military Auxiliary Radio System (MARS) or Civil Air Patrol (CAP) frequencies, which are located outside of the normal U.S. amateur radio bands. This modification unlock does not include any MARS/CAP programming of the radio.
Optional custom programming services are available starting at $29 per mobile radio (using one of our standard frequency templates) - custom additional channels added to any standard programming template programmed for only $1.00 per additional channel.
